Home > Products > Non-ferrous Metal & Products > Molybdenum > Molybdenum Sputtering Target for Coating Mo Target
Molybdenum Sputtering Target for Coating Mo Target
Chinese Manufacturer High Purity MolybdenumTargetChemical Composition of Molybdenum Sputtering Target (Mo≥99.95)ElementFeNiAlSiCaMgCSnPbCrMnTiKOStandard(ppm)≤60≤30≤20≤30≤30≤10≤50≤30≤20≤50≤10≤20≤10&......
Send Inquiry
Product Description
Chinese Manufacturer High Purity MolybdenumTarget
Chemical Composition of Molybdenum Sputtering Target (Mo≥99.95)
Properties of Molybdenum Target
(1)Density: ≥10.10g/cm3
(2) Average Hardess Range: HV180-200
(2) Grain Size: The average grain size is less than 150 micrometer, and the microstructures are as follow:
(3)Ultrasonic Testing: equivalent flaw≤0.5mm
Other Molybdenum Products
Production Process
Production Equipment
About Us
Why Choose Us?
XI'AN JOINXIN NEW MATERIAL TECHNOLOGY CO.,LTD
Arnold Zhang Overseas BD Manager
Tel/Fax:+86-29-86554066
Mobile:+86-18710951866
Chemical Composition of Molybdenum Sputtering Target (Mo≥99.95)
| Element | Fe | Ni | Al | Si | Ca | Mg | C | Sn | Pb | Cr | Mn | Ti | K | O |
| Standard(ppm) | ≤60 | ≤30 | ≤20 | ≤30 | ≤30 | ≤10 | ≤50 | ≤30 | ≤20 | ≤50 | ≤10 | ≤20 | ≤10 | ≤40 |
Properties of Molybdenum Target
(1)Density: ≥10.10g/cm3
(2) Average Hardess Range: HV180-200

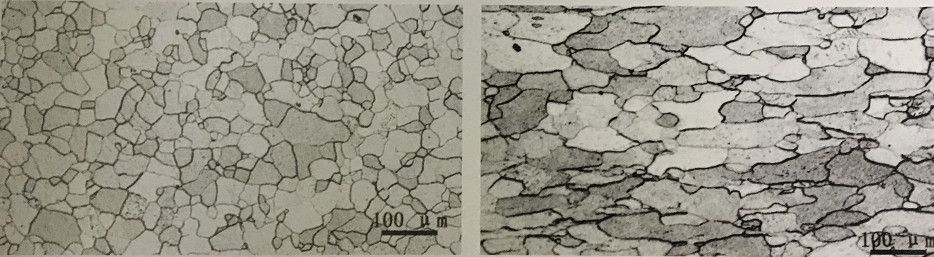

(2) Grain Size: The average grain size is less than 150 micrometer, and the microstructures are as follow:
(3)Ultrasonic Testing: equivalent flaw≤0.5mm

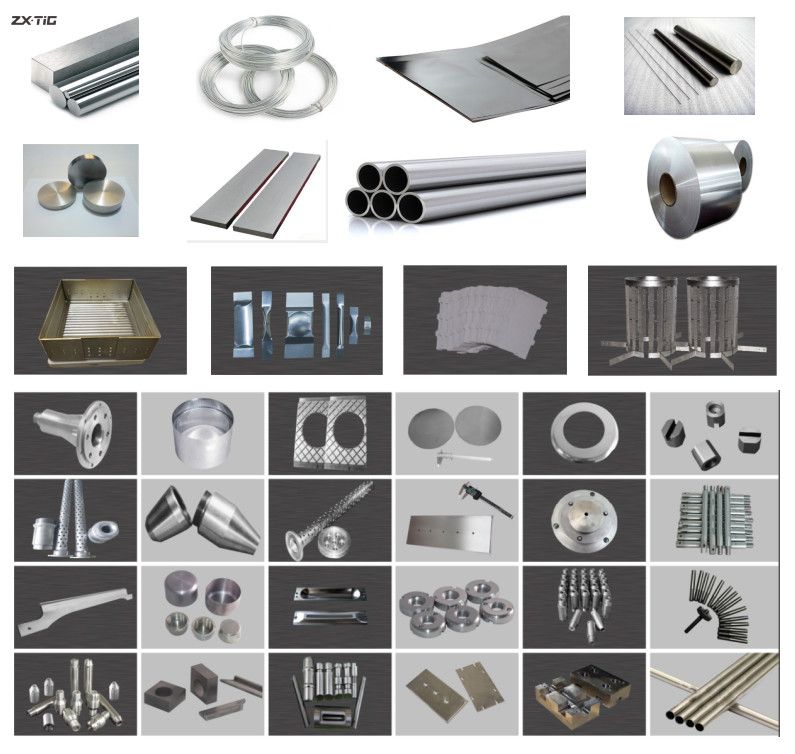

Other Molybdenum Products
| Product Name | Specification(mm) | Standard | Note |
| Wide Molybdenum Plate Wide Molybdenum Sheet | (2.5-30.0)*≤800*≤3000 (0.09-2.5)*≤700*≤10000 | GB/T3876 ASTM B386 | Productivity: 450T/year Productivity: 150T/year |
| Cross Rolled Molybdenum Plate Cross Rolled Molybdenum Sheet | (3.0-6.0) * 800 *800 (0.2-1.0) *700 *700 | GB/T3876 ASTM B386 | IE:≥4mm |
| Molybdenum Foil / Strip | (0.015-0.09)*120 * L | GB/T3877 ASTM B386 | Thickness Tolerance:±0.004mm |
| Molybdenum Rod / Bar | Φ(3-130) * L | GB/T17792 ASTM B387 | Density:≥9.5g/cm3 |
| TZM Rod / Bar | Φ(5-120) * L | ASTM B386 | Content of O:≤300ppm |
| Other Products | Molybdenum wire; Molybdenum target; Molybdenum Alpha ray shield and Molybdenum heat shield; Molybdenum boat; Refractory metal (W, Mo, Ta, Ti) standard parts and deep processed parts; | ||
| Category | Material | Specification |
| Molybdenum | ||
| Mo powder | 99.95% Mo, TZM, TZC, MoHfC(MHC), MoLa, MoY, MoW, MoNb, MoRe, MoCu, etc | GB/T 3461 |
| Bars and plate blanks of Mo | GB/T 3462 | |
| Mo and Mo alloy bar | GB/T 17792 | |
| TZM Mo alloy bars | YS/T 831 | |
| Mo and Mo alloy plate and sheet | GB/T 3876 | |
| Mo foil | GB/T 3877 | |
| Mo wire | GB/T 4182 | |
| Mo bars and Mo rods | GB/T 4188 | |
| Mo discs | GB/T 14592 | |
| Metallic heterotype products for vacuum switch tubes-Mo-disks by punching | SJ/T 10168.2 | |
| Specification for MoCu composite materials bars | SJ 20848 | |
| Mo target | YS/T 1063 | |
| Mo & alloy boats | YS/T 1146 | |
| Sintered Mo alloy mandrels for tube-rolling | YS/T 245 | |

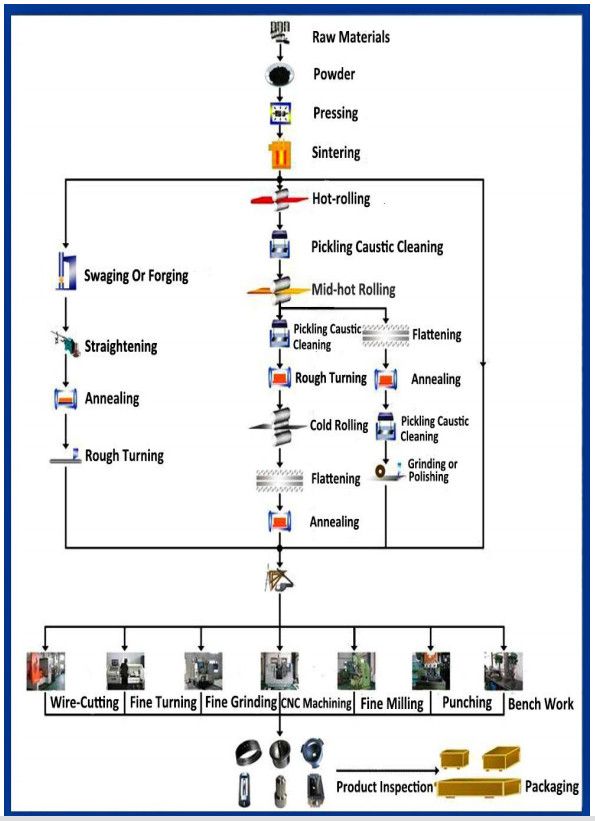

Production Process

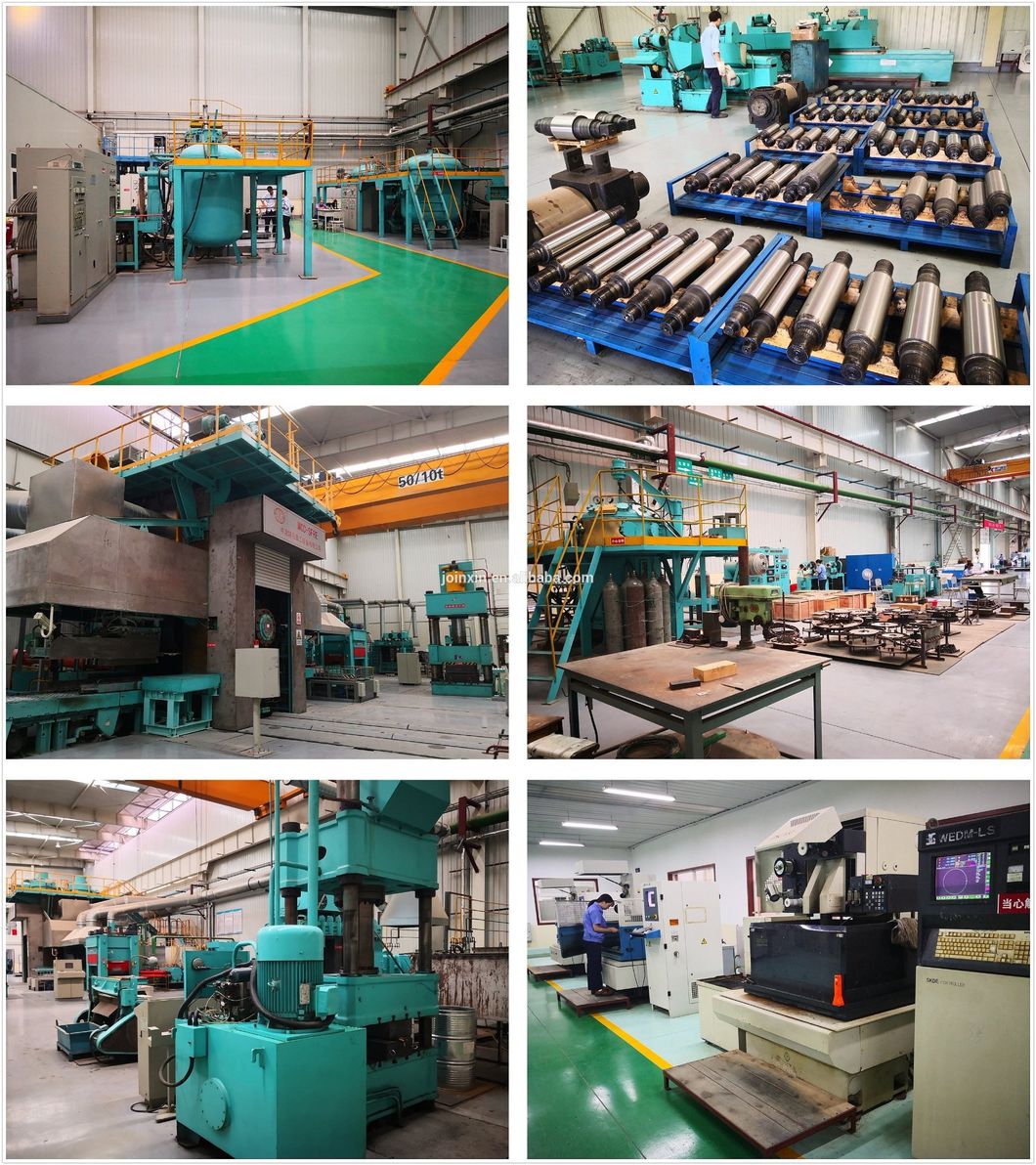

Production Equipment

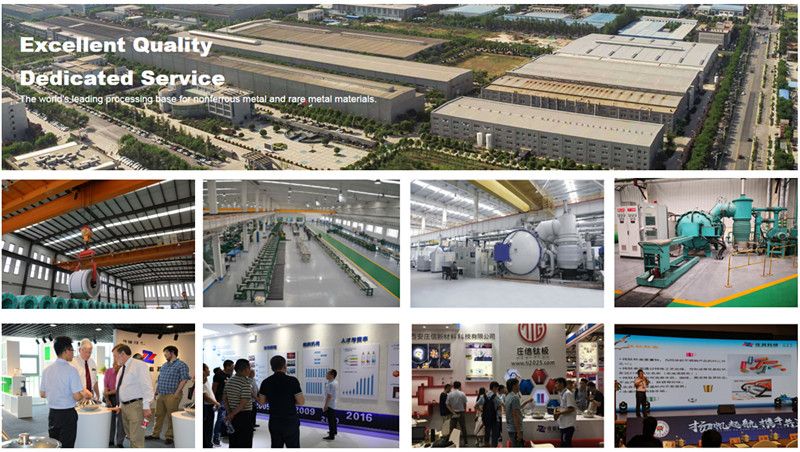

About Us
Why Choose Us?
- 53 years of titanium R&D and production experience
- Our products have been exported to more than 30 countries all round the world
- State-owned company with great credit and strong financial strength
- Competitive price,best service, strict quality control system and on-time delivery
- Related Supply Chain Service
XI'AN JOINXIN NEW MATERIAL TECHNOLOGY CO.,LTD
Arnold Zhang Overseas BD Manager
Tel/Fax:+86-29-86554066
Mobile:+86-18710951866
