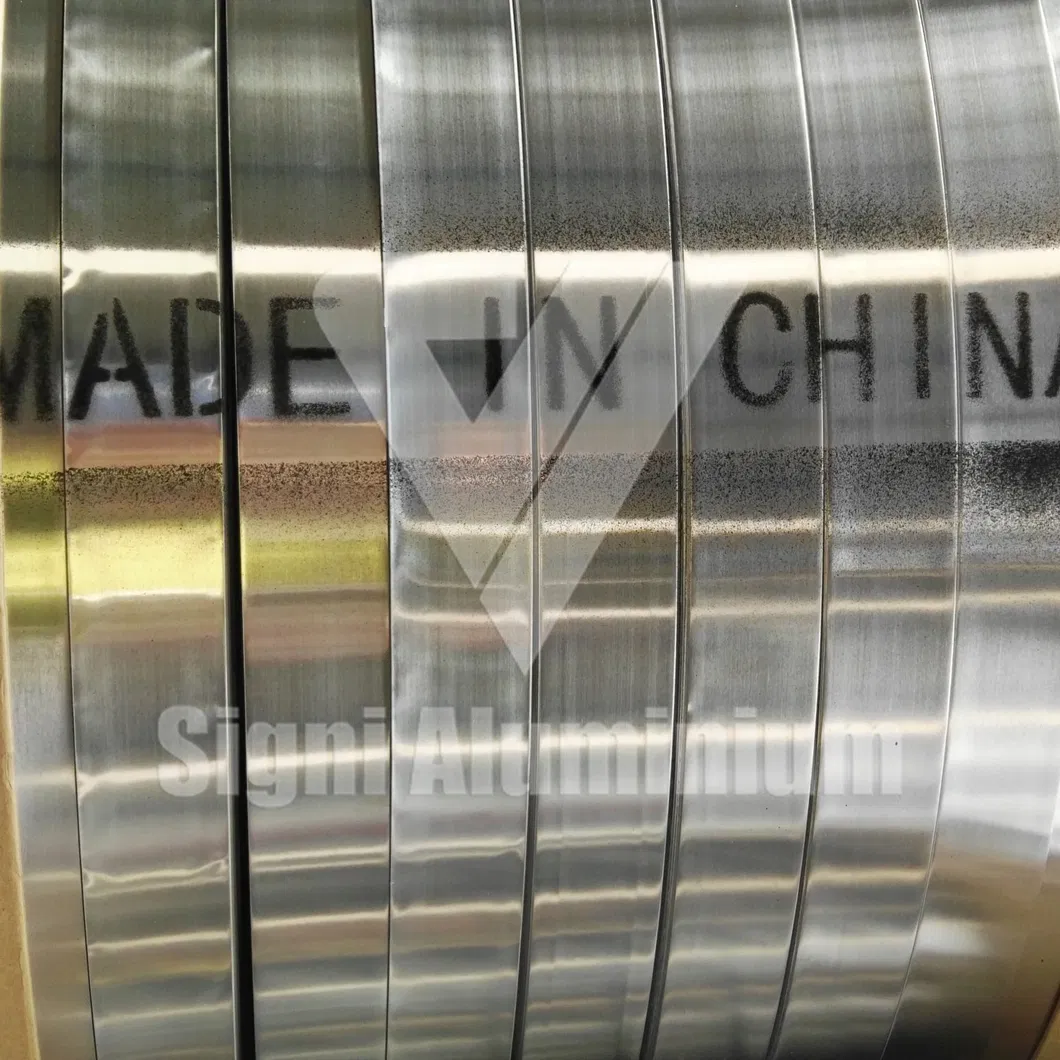

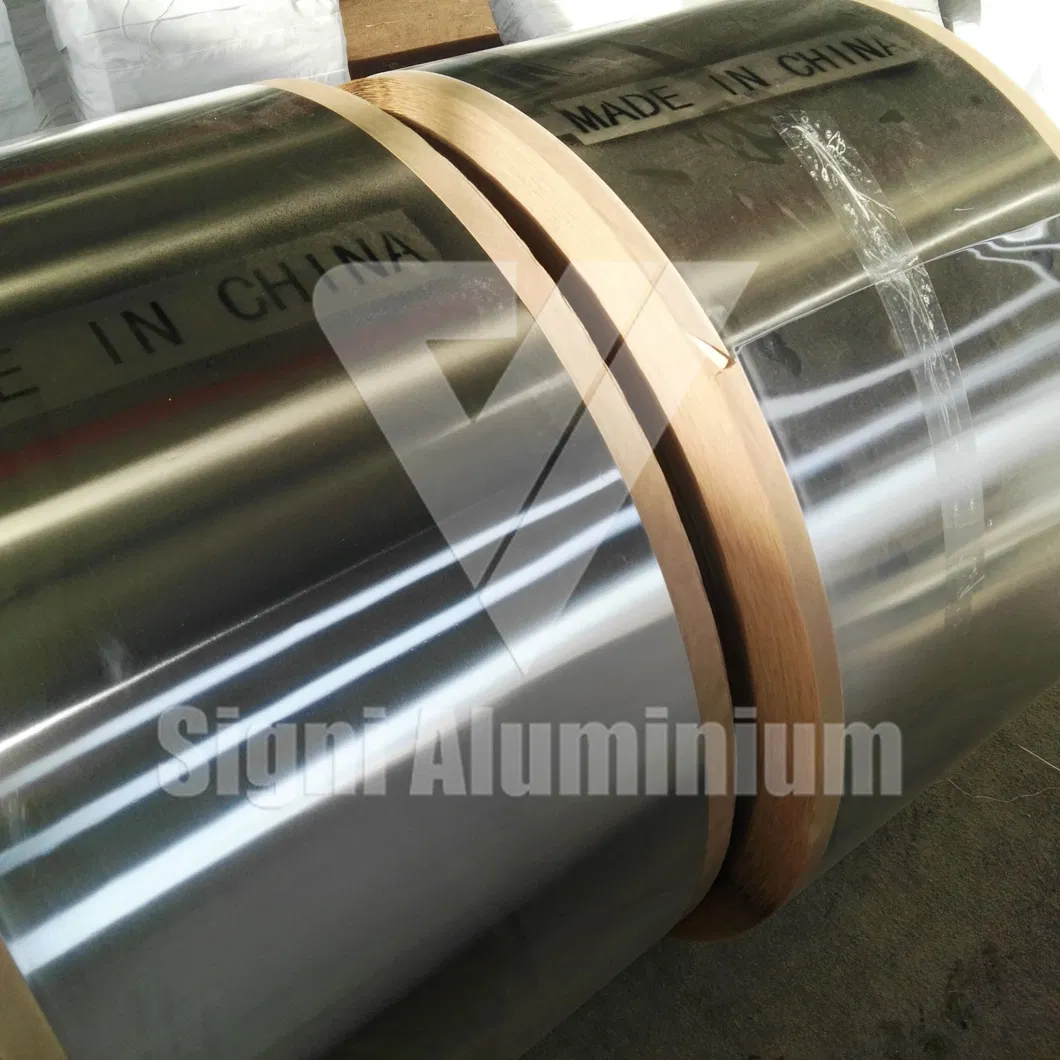

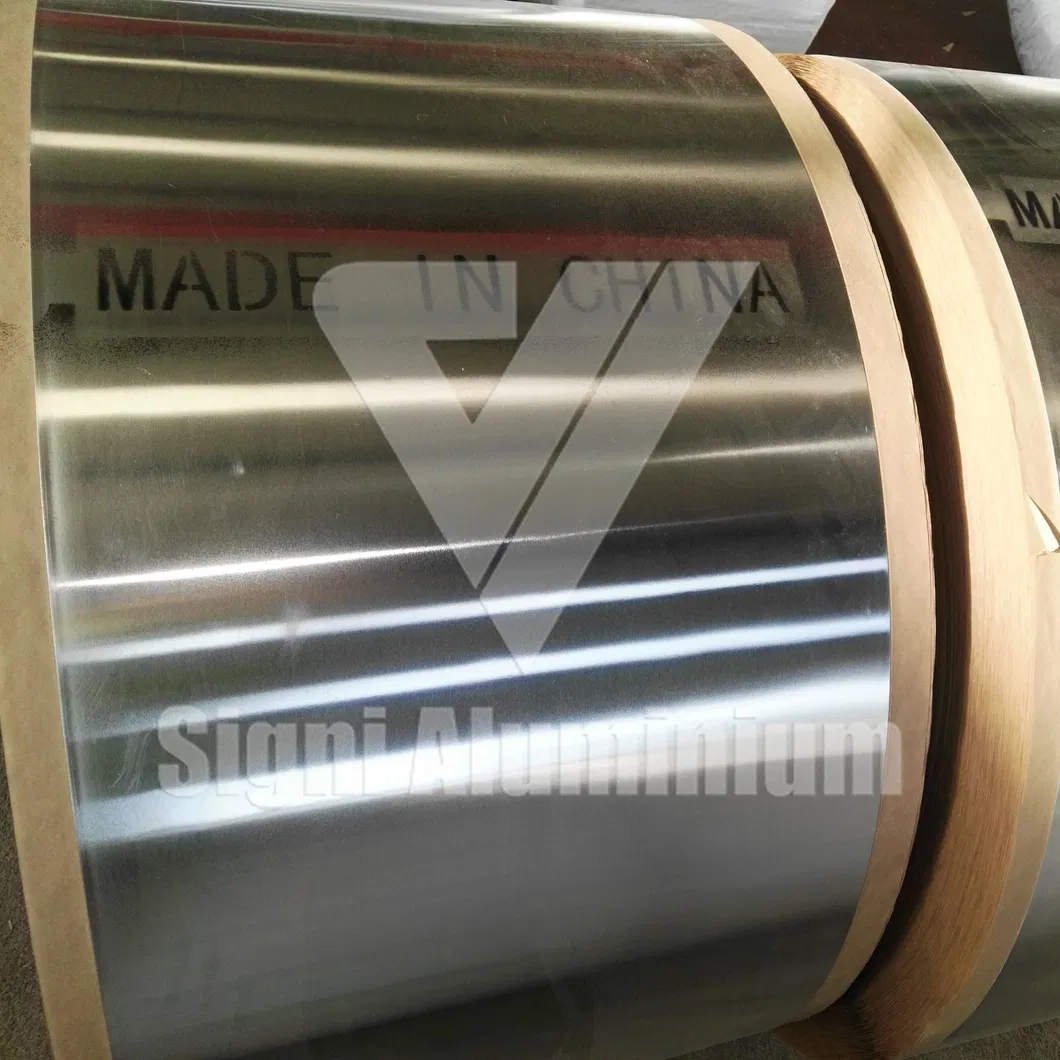

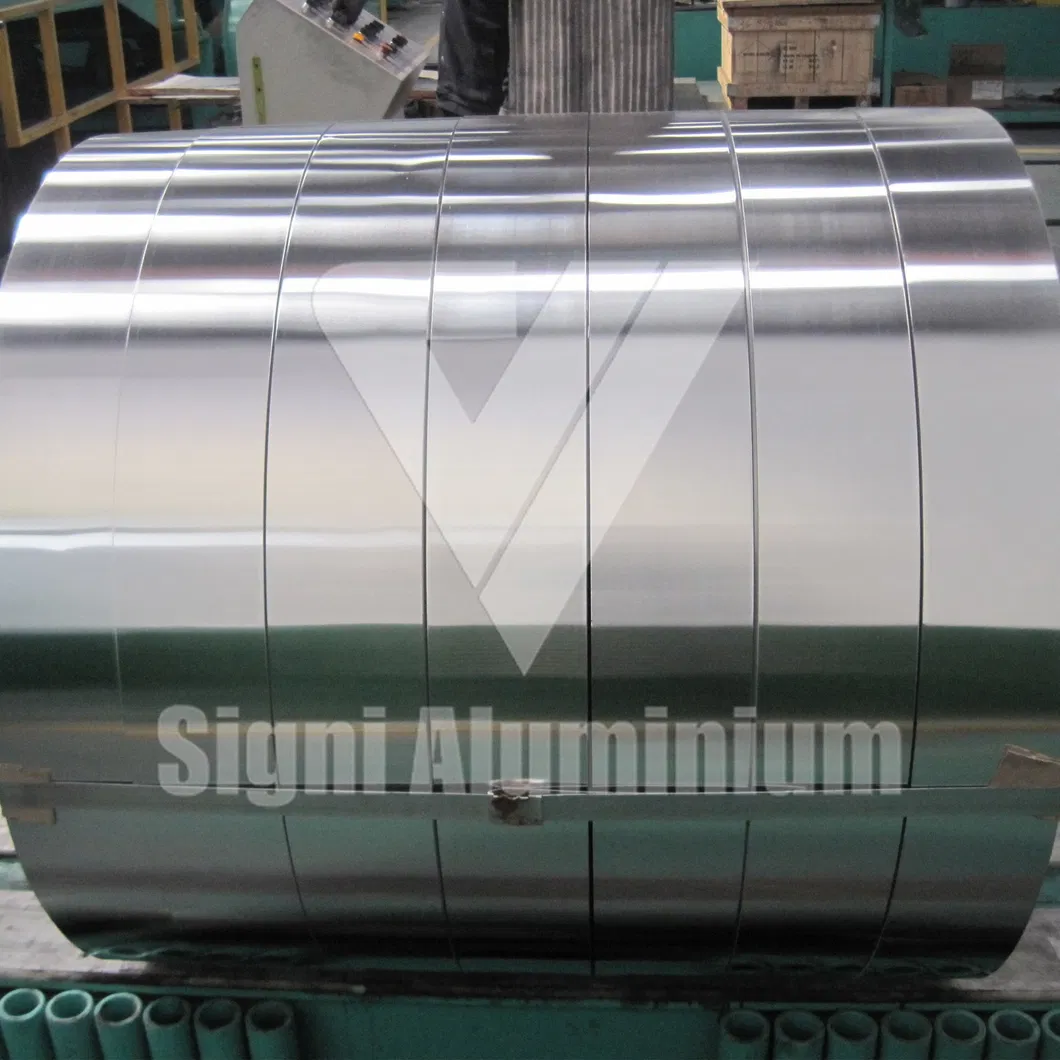

Aluminium Transformer Strip 1060 1070 1350

Product Description

Aluminium Transformer Strip 1060 1070 1350

Aluminum foil strip with round edge without burr and flashing

Alloy: 1050/1060/1070
Temper: O
Thickness: 0.2mm--2.0mm
Width: 50--1200mm
Packing: Eye to wall and eye to sky, wooden pallet and wooden case
U. T. S: 60-95N/mm2
Elongation: >25%
Max. Resistance in 20 degree: ≤ 0.02825Ω Mm2/m
Density in 20 degree: 2.703kg/dm3
Burr's height: 0.01--0.03mm vary with thickness of the strip
Collapsed side's height: 0.05--0.1mm

Signi aluminium Transformer foil for electrical coil application ranges from 0.18mm to 1.8mm, Several aluminum alloys can be used to meet the minimum industry requirements for strip conductor, but alloy 1060/1070/1350 (99.50% aluminum) is generally the low purity limit employed for this application.
Signi aluminium foil strip is closely controlled to assure smooth, substantially burr-free edges and strip-size availabilities are in capacities exactly equivalent to those of standard copper wire sizes.

ALUMINIUM STRIP TOLERANCE
Major Brand	A1060(O) A1050(O)A1070(O)
Thickness	0.2-0.4	0.4-0.8	0.9-1.1	1.2-1.6	1.8-2.0
tolerance	±0.01	±0.015	±0.02	±0.025	±0.03
Width	<100	100-200	201-500	501-1250	>1250
tolerance	±0.1	±0.2	±0.2	±1	±2
BURR AND COLLAPSE
The width of aluminum belt		burr's height		collapsed side's height
<0.2		0.01		≥0.05-0.1
0.2-1.0		0.015
1.1-1.5		0.02
>1.6		0.03
ALUMINIUM STRIP MECHANICAL PROPERTY
U.T.S: 60-95N/mm2			Elongation: >25%
Density in 20 degree:2.703kg/dm3			Max.resistance in 20 degree:≤0.02825Ωmm2/m
