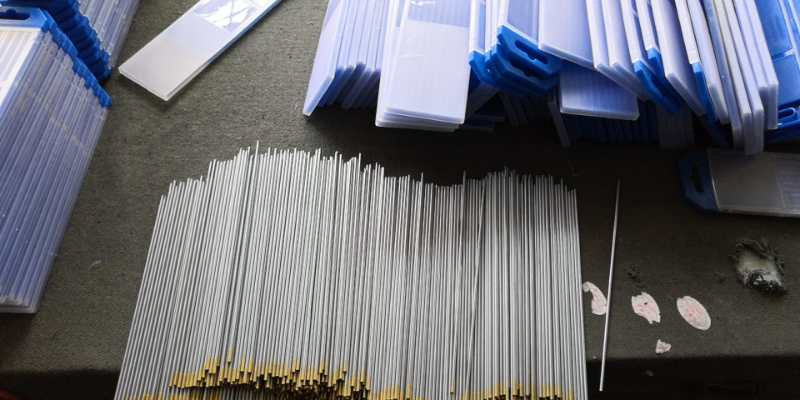

Pure Tungsten Rod Welding Electrode Wolfram Tungsten Electrode for Welding

Product Description

Pure tungsten rods
1. 99.95% Pure Tungsten Rods
Excellent price 99.95% black molybdenum rods description
1)Purity: ≥99.95%
2)Forged density:>19.2g/cm3
3)Welding tungsten rod: WT WL WP WC WY, and dia1.0-10mm Length: 150/175/1100mm
4)Surface:black,ground,polished
5) Rod Size: diameter2-120mm Length<2500mm
6)Straightened rods after drawn diameter0.8mm-3.2mm
7) Price: USD55/kg Pure Tungsten Rod Welding Electrode Wolfram Tungsten Electrode for Welding

Pure Tungsten Rod Welding Electrode Wolfram Tungsten Electrode for Welding

Pure tungsten electrode Tungsten Rod/Electrode for TIG Welding 2, 4*150/175mm
Wolfram tungsten electrode for argon arc welding
We have many kinds of tungsten electrode type:
Pure tungsten electrodes-WP(marked green color)
Thoriated tungsten electrodes- WT10(marked yellow color)

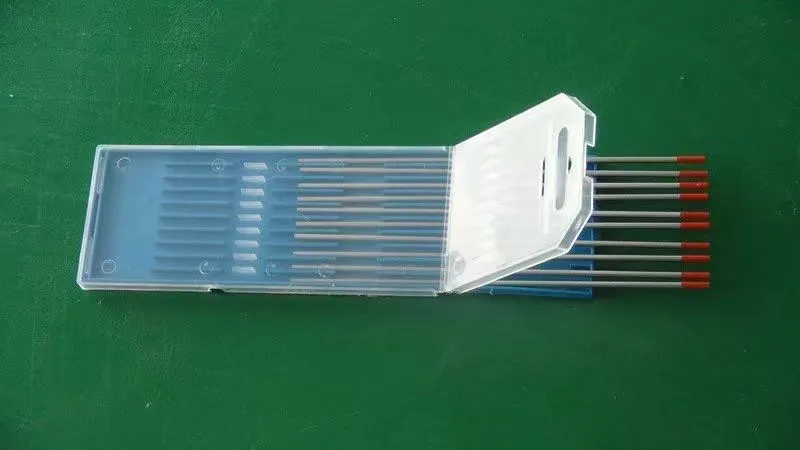

WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Lanthanum tungsten electrodes-WL10(marked black color)

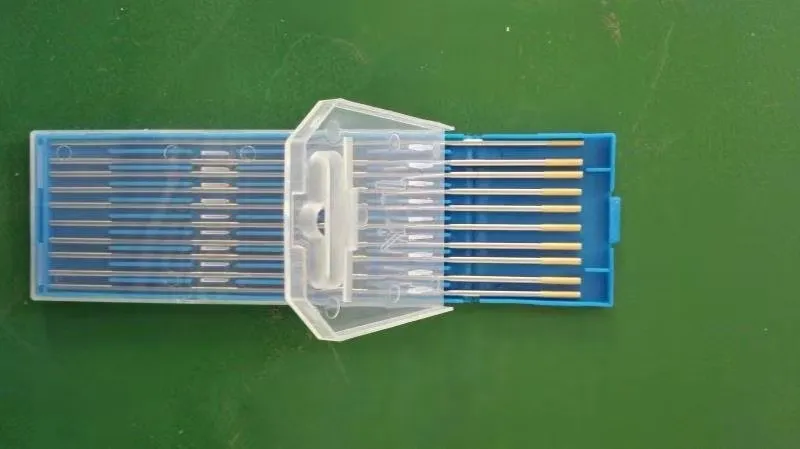

WL15(marked gold color)

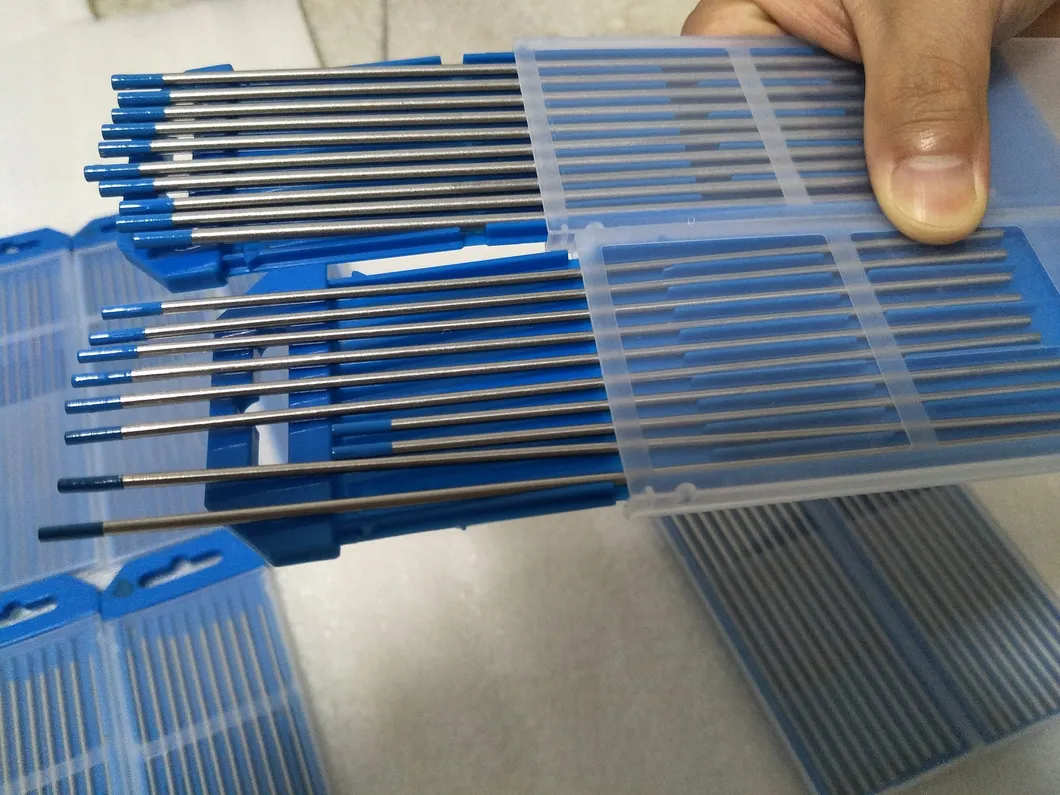

WL20(marked blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked sky blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color)

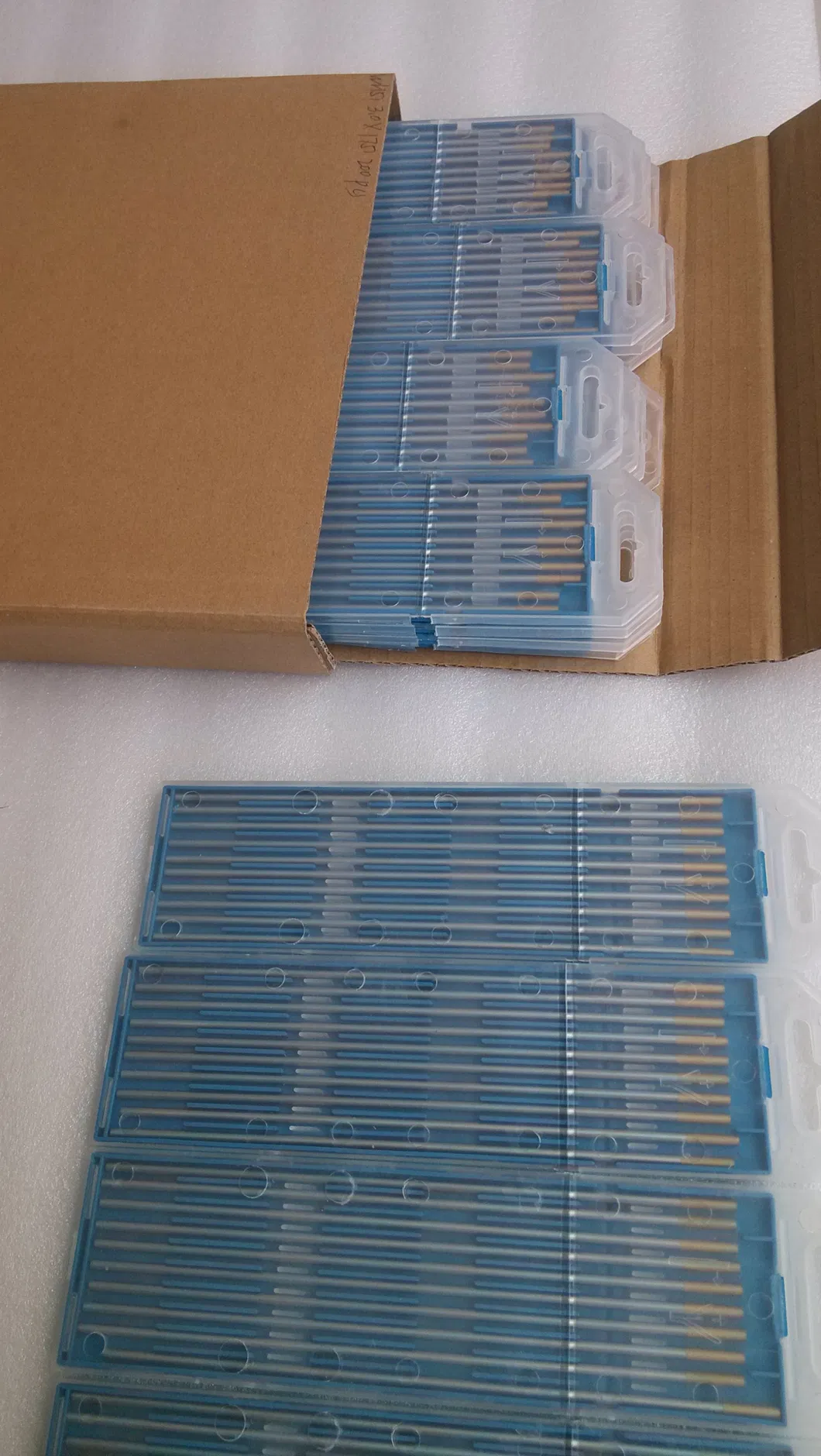

Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm
1.6mmX150mm, 1.6mmX175mm
2.0mmX150mm, 2.0mmX175mm
2.4mmX150mm, 2.4mmX175mm
3.0mmX150mm, 3.0mmX175mm
3.2mmX150mm, 3.2mmX175mm
Pure Tungsten Rod Welding Electrode Wolfram Tungsten Electrode for Welding

WT electrodes---Thoriated tungsten electrode:
Grade: WT10 WT20 WT3 WT40
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0, 10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Density: 19.2g/cm3
WL10 WL15 WL20 electrodes--Lanthanum tungsten electrodes:
Grade: WL
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0,10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Density: 19.2g/cm3

Type	Trademark	Added impurity	Impurity quantity %	Other impurities%	Tungsten %	Electric discharged power	Color sign
Lanthanated Tungsten Electrodes	WL10	La203	0.8-1.2	< 0.20	The rest 99.95%	2.6-2.7	Black
	WL15		1.3-1.7			2.8-3.0	Gold
	WL20		1.8-2.2			2.8-3.2	Sky Blue

polished tungsten rods bar in hot sale

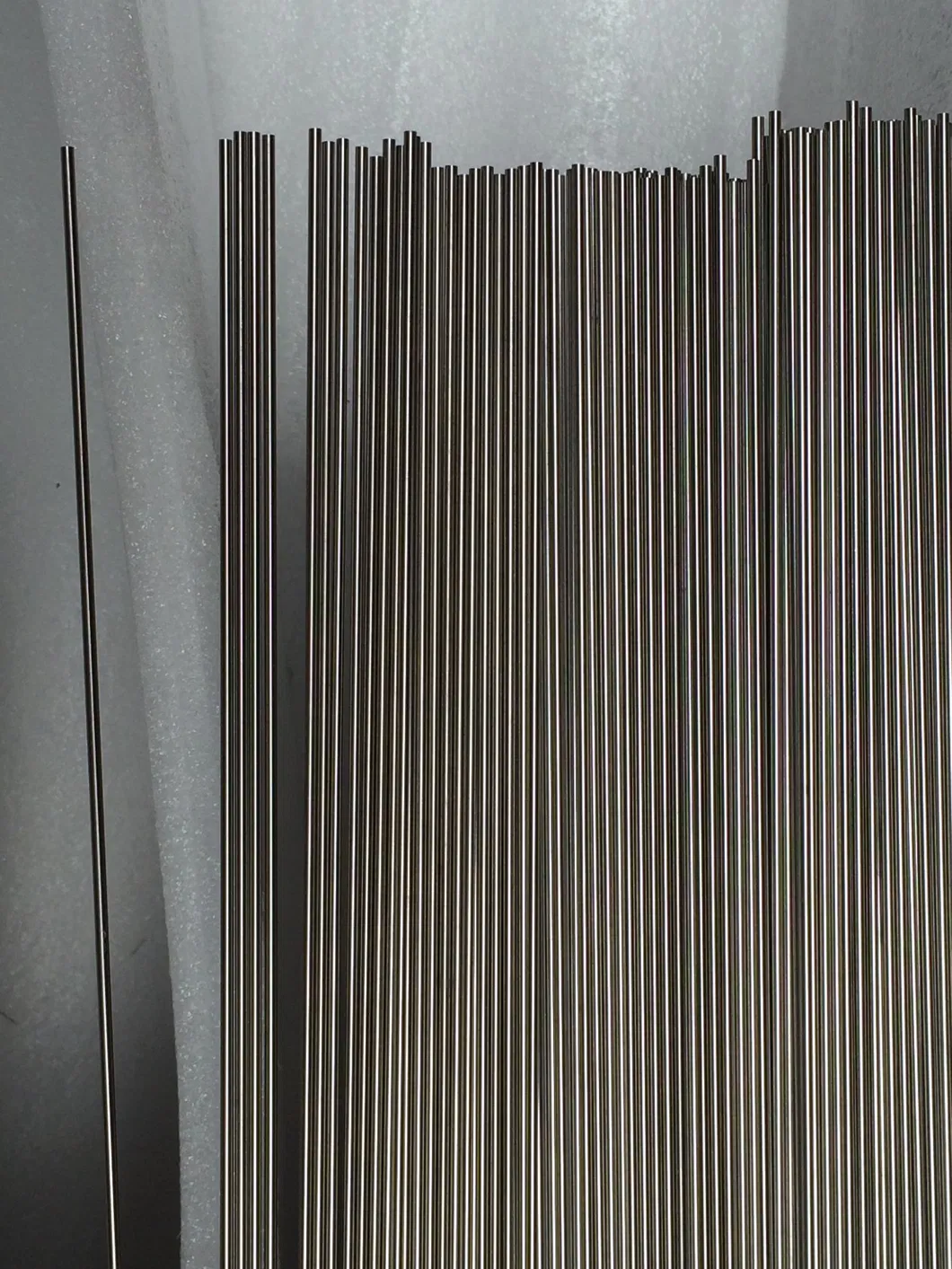

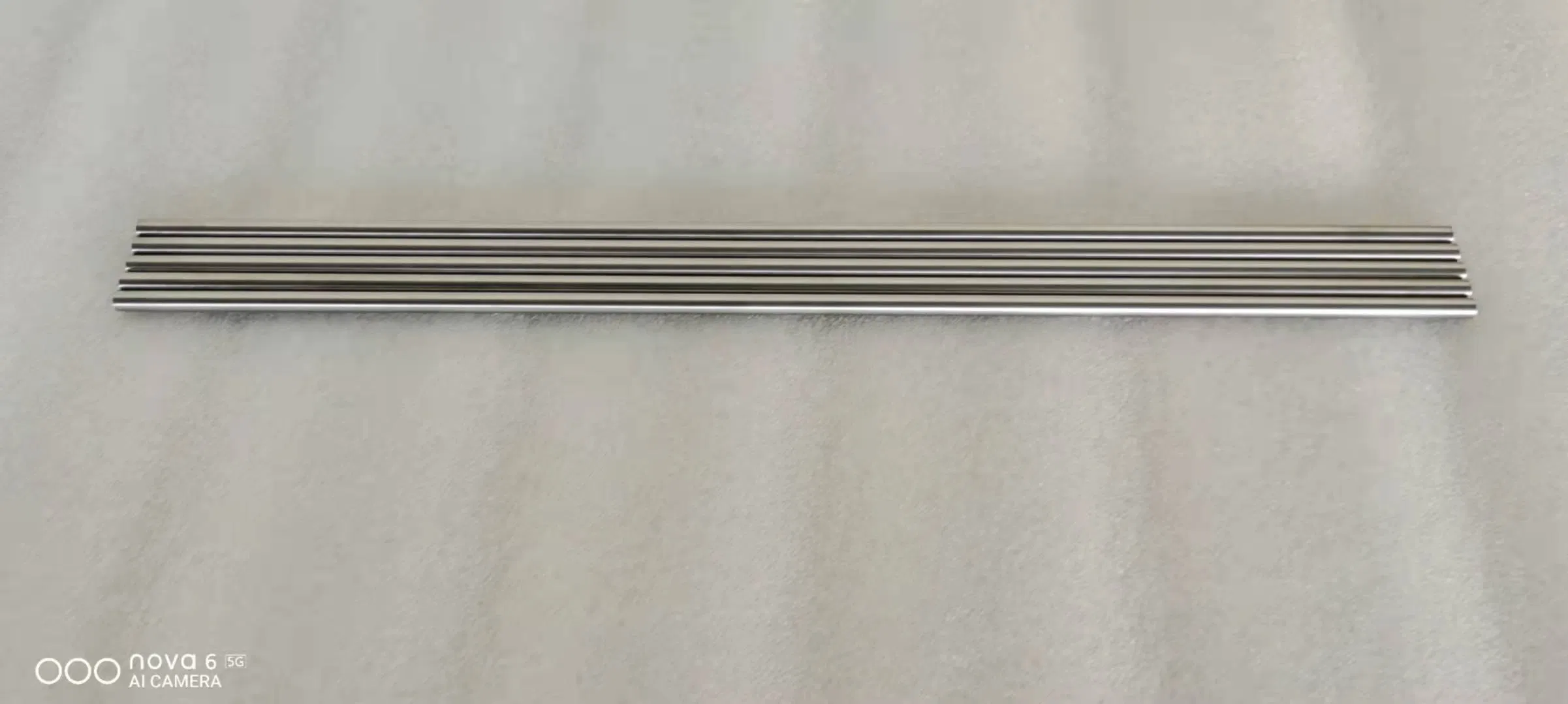

1. Pure tungsten rod specification:

W Rods Purity	99.95
Density	>19.2g/cm3
Flatness	<2%
Dimension	Diameter(2.0-100)*L (mm)
Surface	Black,ground&polished
Price	As order quantity and surface
Delivery time	7-15 days
Application	Used in electric boosting glass kiln electrode Suitable for producing ion implantation parts; For producing electric light source parts and electric vacuum components; For producing heating elements and refractory parts in high temperature furnaces; Used as electrodes in the field of rare earth metal industry.

2.Tungsten rods surface finish:
Black:Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control.

3. Tungsten rods available size:
Forged rods size: Diameter(2-100mm)*Length<2500mm
Strainghtened rods after drawn diameter 0.8-3.2mm

Diameter(mm)	Length(mm)
Φ 1.5-20	1800-2000
Φ 20-30	1000-1200
Φ 30-60	800-1000
Φ 60-70	800
Φ 70-90	600

Tungsten Content	Type	Diameter (mm)	Dia.Tolerance (mm)	Length (mm)	L tolerance (mm)
99.95%	Sintering rod	40-100	±3	500max	±5
99.95%	Forged rod	20-80	±2	800max	±5
99.95%	Ground rod	2-60	±0.1	600max	±1
