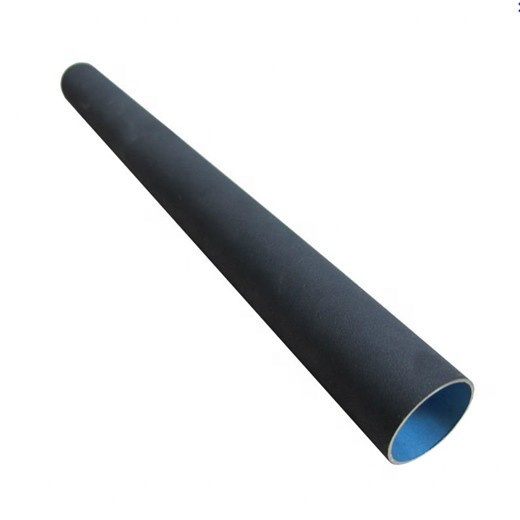

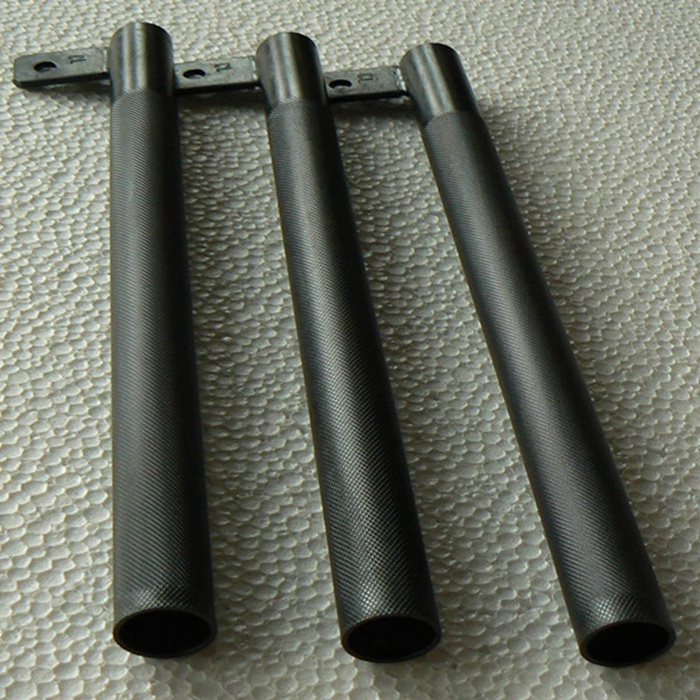

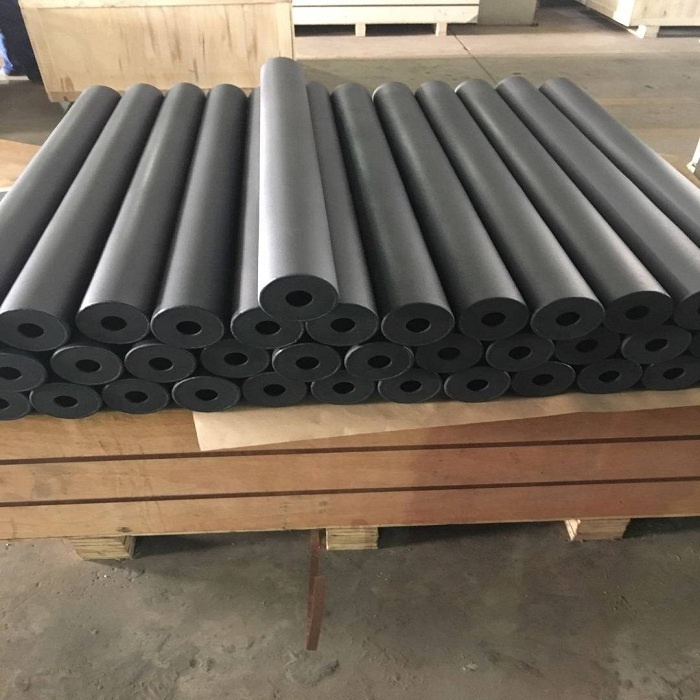

RuO2 IrO2 coated pure titanium anode tubularAVAILABLE SIZESCoating Catalyst: Platinum (Pt), Ruthenium (Ru), Iridium (Ir)Coating Thickness: 0.5-15μmPH Value: 1-14STANDARDGr.1 or Gr.2 TitaniumTYPERod, wire, plate, mesh, tubular, box, ring, ribbonEXAMPLE APPLICATIONSSeawater electrolysis, horizo......

| Grade | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||
| ASTM | UNS No | N | C | H | Fe | O | Ti | Other element (each) | Other element (total) | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | Bal. | <0.1 | <0.4 | 240 | 138 | 24 | 30 |
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | Bal. | <0.1 | <0.4 | 345 | 275 | 20 | 30 |
