Prepainted Gi PPGI Gl PPGL CRC HRC Cold Rolled Steel Coil Coated Corrugated
Product Description1. Prepainted Color Coated Steel Coil for Building2. Material Grade:Q195,Q215,Q235,Q275,3.Standard: ASTM BS JIS NF DIN GB AISI4.Thickness:0.1mm-200mm5.Width:600/1000/1219/1250/1500/2000/3000/4000mm,or other width as the customers' requirements.6.Length:2000/2438/2500/4000/6000......
Send Inquiry
Product Description
Product Description

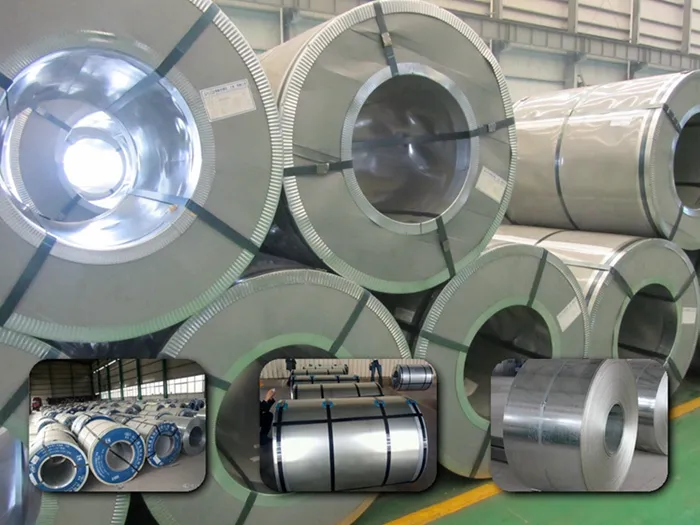

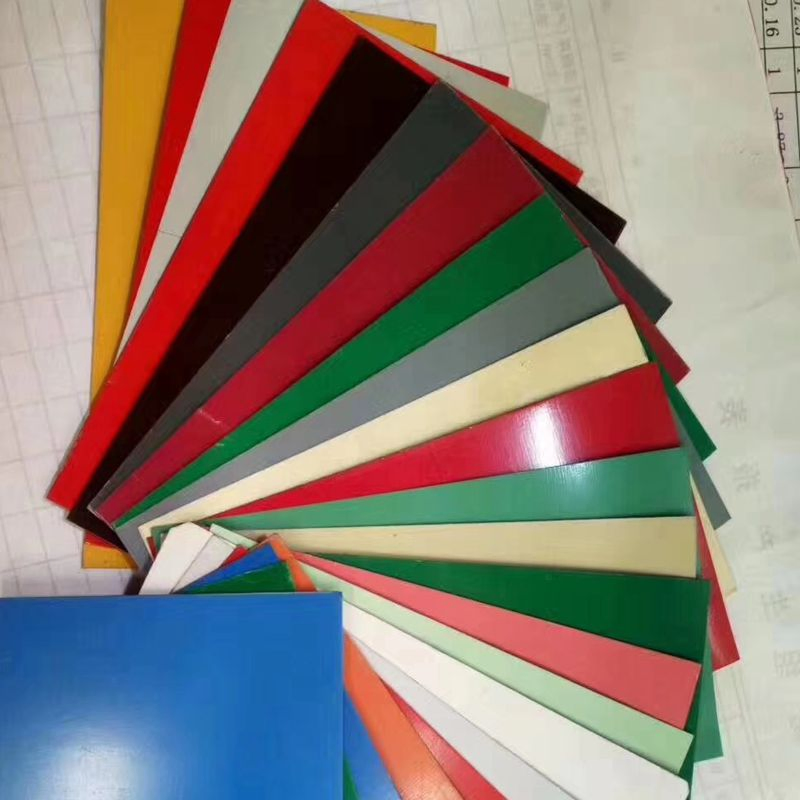

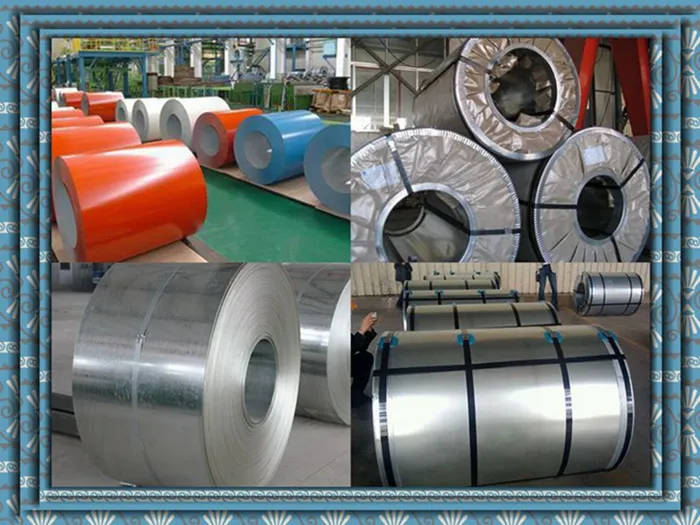

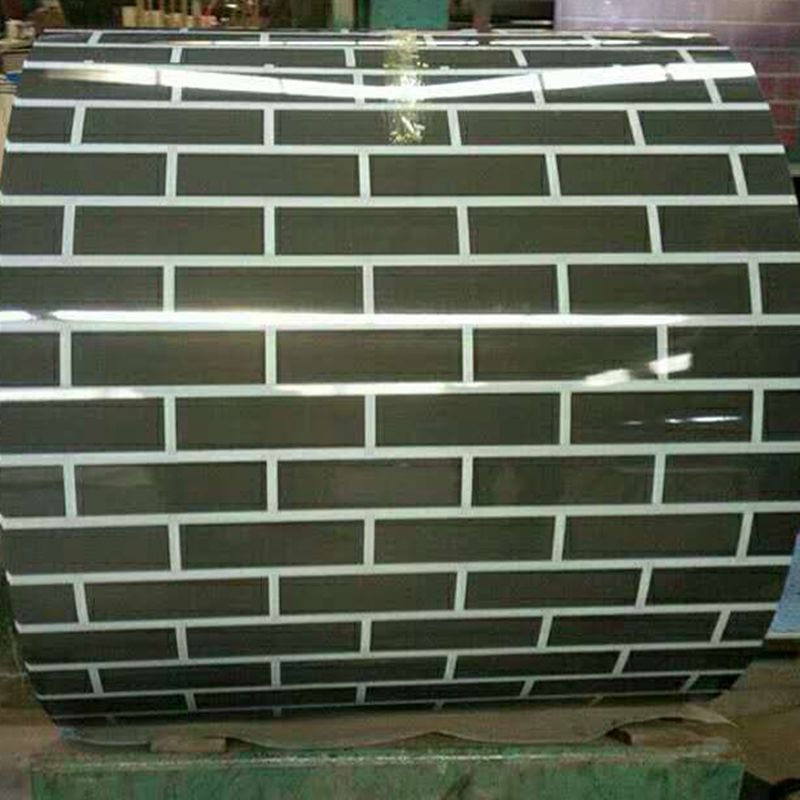

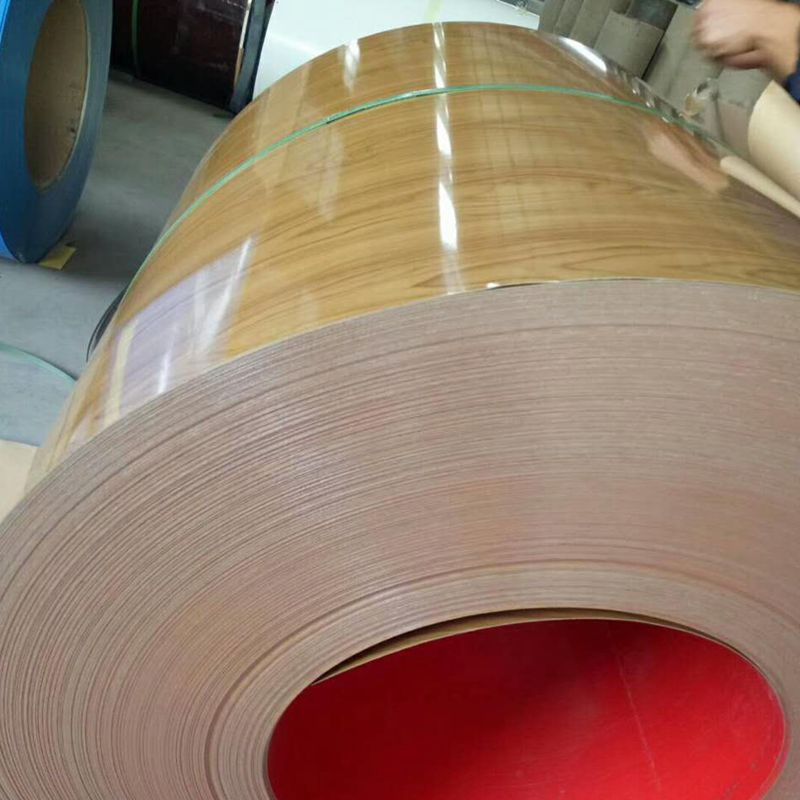

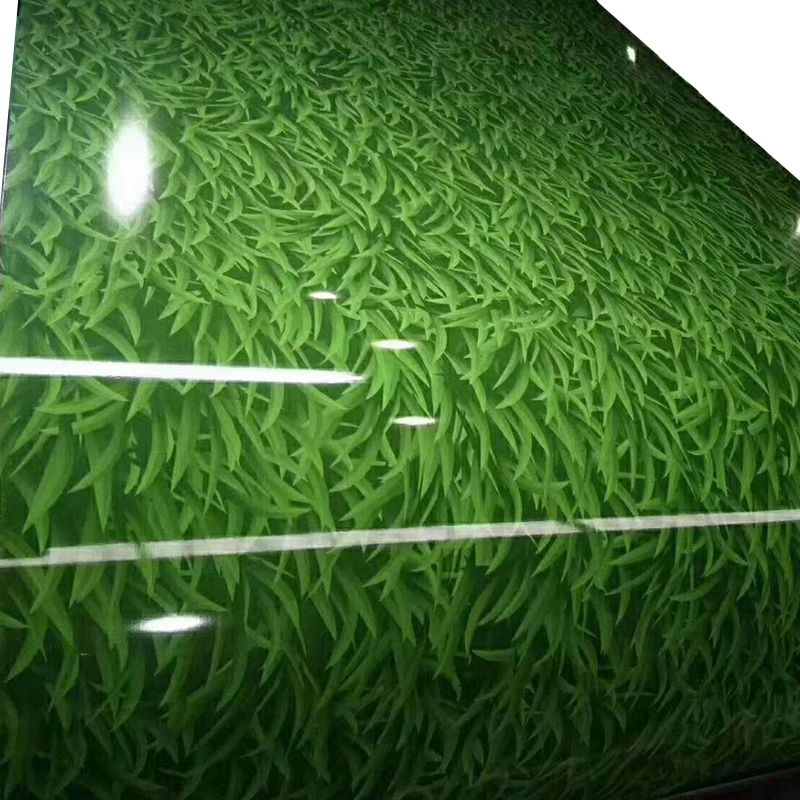

1. Prepainted Color Coated Steel Coil for Building
2. Material Grade:
Q195,Q215,Q235,Q275,
3.Standard: ASTM BS JIS NF DIN GB AISI
4.Thickness:0.1mm-200mm
5.Width:600/1000/1219/1250/1500/2000/3000/4000mm,or other width as the customers' requirements.
6.Length:2000/2438/2500/4000/6000/8000/10000mm,or other length as the customers' requirements.
7.Process: cold rolled; hot rolled; forged
8.Surface:rough turning; milling; grinding; turning; blackface; galvanized; coated;
Product Range
We have
1)Folding by the amount of alloying elements, divided into
Low alloy steel (alloying element total less than 5%) sheet/plate/coil/roll;
Medium alloy steel (alloying elements total 5% -10%) sheet/plate/coil/roll;
High alloy steel (alloying elements total more than 10%). sheet/plate/coil/roll;
2)Folding according to the main alloy elements contained, divided into
Chrome steel (Cr-Fe-C) sheet/plate/coil/roll;
Cr-Ni-Fe-C sheet/plate/coil/roll;
Manganese steel (Mn-Fe-C) sheet/plate/coil/roll;
Silicon-manganese steel (Si-Mn-Fe-C) sheet/plate/coil/roll;
3)Folding by classification
Alloy structural steel sheet/plate/coil/roll;
Alloy tool steel sheet/plate/coil/roll;
Special performance steel sheet/plate/coil/roll;
For the process,
We have cold rolled/ hot rolled/ forged.
For the cold rolled steel sheet/plate, the thickness we have 0.1mm-8mm
For the hot rolled steel sheet/plate, the thickness we have 0.35-200mm
Applications for industrial :
1.Automotive,
2.Electrical products,
3.Locomotives and rolling stock,
4.Aviation, precision instruments,
5.Canned food,
6.Cold forming steel,
7.Structural steel,
8.Automotive structural steel,
9.Corrosion resistant structural steel,
10.Mechanical structural steel,
11.Welded cylinders and pressure vessels steel
12.others
Packing
Standard export packing, or as the customers' requirement.
Why choose us?
Our company established in 2004.More than 10 years of development,we become the leader in north China market in metal material products.We have more than 1000 tons of perennial stock.
What is our customer base?
Our customers are located in more than 80 countries and regions around the world,especially in the Middle East,Southeast Asia,South America,North America,Australia,Eastern Europe,Nordic has long-term stability of customers.
What is our advantage?
We have high quality products and professional services. Our products after SGS,BV,ISO certification. Our salesman has more than five years of experience.
1. Prepainted Color Coated Steel Coil for Building
2. Material Grade:
Q195,Q215,Q235,Q275,
3.Standard: ASTM BS JIS NF DIN GB AISI
4.Thickness:0.1mm-200mm
5.Width:600/1000/1219/1250/1500/2000/3000/4000mm,or other width as the customers' requirements.
6.Length:2000/2438/2500/4000/6000/8000/10000mm,or other length as the customers' requirements.
7.Process: cold rolled; hot rolled; forged
8.Surface:rough turning; milling; grinding; turning; blackface; galvanized; coated;
Product Range
We have
1)Folding by the amount of alloying elements, divided into
Low alloy steel (alloying element total less than 5%) sheet/plate/coil/roll;
Medium alloy steel (alloying elements total 5% -10%) sheet/plate/coil/roll;
High alloy steel (alloying elements total more than 10%). sheet/plate/coil/roll;
2)Folding according to the main alloy elements contained, divided into
Chrome steel (Cr-Fe-C) sheet/plate/coil/roll;
Cr-Ni-Fe-C sheet/plate/coil/roll;
Manganese steel (Mn-Fe-C) sheet/plate/coil/roll;
Silicon-manganese steel (Si-Mn-Fe-C) sheet/plate/coil/roll;
3)Folding by classification
Alloy structural steel sheet/plate/coil/roll;
Alloy tool steel sheet/plate/coil/roll;
Special performance steel sheet/plate/coil/roll;
For the process,
We have cold rolled/ hot rolled/ forged.
For the cold rolled steel sheet/plate, the thickness we have 0.1mm-8mm
For the hot rolled steel sheet/plate, the thickness we have 0.35-200mm
Applications for industrial :
1.Automotive,
2.Electrical products,
3.Locomotives and rolling stock,
4.Aviation, precision instruments,
5.Canned food,
6.Cold forming steel,
7.Structural steel,
8.Automotive structural steel,
9.Corrosion resistant structural steel,
10.Mechanical structural steel,
11.Welded cylinders and pressure vessels steel
12.others
Packing
Standard export packing, or as the customers' requirement.
Why choose us?
Our company established in 2004.More than 10 years of development,we become the leader in north China market in metal material products.We have more than 1000 tons of perennial stock.
What is our customer base?
Our customers are located in more than 80 countries and regions around the world,especially in the Middle East,Southeast Asia,South America,North America,Australia,Eastern Europe,Nordic has long-term stability of customers.
What is our advantage?
We have high quality products and professional services. Our products after SGS,BV,ISO certification. Our salesman has more than five years of experience.
| Grade | China | USA | UK | Japan | France | Germany | |
| GB | ГОСТ | ASTM | BS | JIS | NF | DIN | |
| 08F | 08КП | 1006 | 040A04 | S09CK | C10 | ||
| Carbon | 08 | 08 | 1008 | 045M10 | S9CK | C10 | |
| 10F | 1010 | 040A10 | XC10 | ||||
| 10 | 10 | 1010,1012 | 045M10 | S10C | XC10 | C10,CK10 | |
| 15 | 15 | 1015 | 095M15 | S15C | XC12 | C15,CK15 | |
| Construction | 20 | 20 | 1020 | 050A20 | S20C | XC18 | C22,CK22 |
| 25 | 25 | 1025 | S25C | CK25 | |||
| 30 | 30 | 1030 | 060A30 | S30C | XC32 | ||
| 35 | 35 | 1035 | 060A35 | S35C | XC38TS | C35,CK35 | |
| 40 | 40 | 1040 | 080A40 | S40C | XC38H1 | ||
| Steel | 45 | 45 | 1045 | 080M46 | S45C | XC45 | C45,CK45 |
| 50 | 50 | 1050 | 060A52 | S50C | XC48TS | CK53 | |
| 55 | 55 | 1055 | 070M55 | S55C | XC55 | ||
| 60 | 60 | 1060 | 080A62 | S58C | XC55 | C60,CK60 | |
| 15Mn | 15Г | 1016,1115 | 080A17 | SB46 | XC12 | 14Mn4 | |
| 20Mn | 20Г | 1021,1022 | 080A20 | XC18 | |||
| 30Mn | 30Г | 1030,1033 | 080A32 | S30C | XC32 | ||
| 40Mn | 40Г | 1036,1040 | 080A40 | S40C | 40M5 | 40Mn4 | |
| 45Mn | 45Г | 1043,1045 | 080A47 | S45C | |||
| 50Mn | 50Г | 1050,1052 | 030A52 | S53C | XC48 | ||
| 080M50 | |||||||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| 20Mn2 | 20Г2 | 1320,1321 | 150M19 | SMn420 | 20Mn5 | ||
| 30Mn2 | 30Г2 | 1330 | 150M28 | SMn433H | 32M5 | 30Mn5 | |
| 35Mn2 | 35Г2 | 1335 | 150M36 | SMn438(H) | 35M5 | 36Mn5 | |
| 40Mn2 | 40Г2 | 1340 | SMn443 | 40M5 | |||
| 45Mn2 | 45Г2 | 1345 | SMn443 | 46Mn7 | |||
| 50Mn2 | 50Г2 | ~55M5 | |||||
| Alloy | 20MnV | 20MnV6 | |||||
| 35SiMn | 35CГ | En46 | 37MnSi5 | ||||
| 42SiMn | 35CГ | En46 | 46MnSi4 | ||||
| 40B | TS14B35 | ||||||
| 45B | 50B46H | ||||||
| 40MnB | 50B40 | ||||||
| 45MnB | 50B44 | ||||||
| Construction | 15Cr | 15X | 5115 | 523M15 | SCr415(H) | 12C3 | 15Cr3 |
| 20Cr | 20X | 5120 | 527A19 | SCr420H | 18C3 | 20Cr4 | |
| 30Cr | 30X | 5130 | 530A30 | SCr430 | 28Cr4 | ||
| 35Cr | 35X | 5132 | 530A36 | SCr430(H) | 32C4 | 34Cr4 | |
| 40Cr | 40X | 5140 | 520M40 | SCr440 | 42C4 | 41Cr4 | |
| 45Cr | 45X | 5145,5147 | 534A99 | SCr445 | 45C4 | ||
| 38CrSi | 38XC | ||||||
| 12CrMo | 12XM | 620CR.B | 12CD4 | 13CrMo44 | |||
| 15CrMo | 15XM | A-387Cr . B | 1653 | STC42 | 12CD4 | 16CrMo44 | |
| STT42 | |||||||
| Steel | STB42 | ||||||
| 20CrMo | 20XM | 4119,4118 | CDS12 | SCT42 | 18CD4 | 20CrMo44 | |
| CDS110 | STT42 | ||||||
| STB42 | |||||||
| 25CrMo | 4125 | En20A | 25CD4 | 25CrMo4 | |||
| 30CrMo | 30XM | 4130 | 1717COS110 | SCM420 | 30CD4 | ||
| 42CrMo | 4140 | 708A42 | 42CD4 | 42CrMo4 | |||
| 708M40 | |||||||
| 35CrMo | 35XM | 4135 | 708A37 | SCM3 | 35CD4 | 34CrMo4 | |
| 12CrMoV | 12XMΦ | ||||||
| 12Cr1MoV | 12X1MΦ | 13CrMoV42 | |||||
| 25Cr2Mo1VA | 25X2M1ΦA | ||||||
| 20CrV | 20XΦ | 6120 | 22CrV4 | ||||
| 40CrV | 40XΦA | 6140 | 42CrV6 | ||||
| 50CrVA | 50XΦA | 6150 | 735A30 | SUP10 | 50CV4 | 50CrV4 | |
| 15CrMn | 15XГ,18XГ | ||||||
| 20CrMn | 20XГCA | 5152 | 527A60 | SUP9 | |||
| 30CrMnSiA | 30XГCA | ||||||
| 40CrNi | 40XH | 3140H | 640M40 | SNC236 | 40NiCr6 | ||
| 20CrNi3A | 20XH3A | 3316 | 20NC11 | 20NiCr14 | |||
| 30CrNi3A | 30XH3A | 3325 | 653M31 | SNC631H | 28NiCr10 | ||
| 3330 | SNC631 | ||||||
| 20MnMoB | 80B20 | ||||||
| 38CrMoAlA | 38XMIOA | 905M39 | SACM645 | 40CAD6.12 | 41CrAlMo07 | ||
| 40CrNiMoA | 40XHMA | 4340 | 871M40 | SNCM439 | 40NiCrMo22 | ||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| 60 | 60 | 1060 | 080A62 | S58C | XC55 | C60 | |
| 85 | 85 | C1085 | 080A86 | SUP3 | |||
| Spring | 1084 | ||||||
| 65Mn | 65Г | 1566 | |||||
| Steel | 55Si2Mn | 55C2Г | 9255 | 250A53 | SUP6 | 55S6 | 55Si7 |
| 60Si2MnA | 60C2ГA | 9260 | 250A61 | SUP7 | 61S7 | 65Si7 | |
| 9260H | |||||||
| 50CrVA | 50XΦA | 6150 | 735A50 | SUP10 | 50CV4 | 50CrV4 | |
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| GCr9 | ШX9 | E51100 | SUJ1 | 100C5 | 105Cr4 | ||
| Bearing | 51100 | ||||||
| GCr9SiMn | SUJ3 | ||||||
| Steel | GCr15 | ШX15 | E52100 | 534A99 | SUJ2 | 100C6 | 100Cr6 |
| 52100 | |||||||
| GCr15SiMn | ШX15CГ | 100CrMn6 | |||||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| Y12 | A12 | C1109 | SUM12 | ||||
| Free | Y15 | B1113 | 220M07 | SUM22 | 10S20 | ||
| Cutting | Y20 | A20 | C1120 | SUM32 | 20F2 | 22S20 | |
| Steel | Y30 | A30 | C1130 | SUM42 | 35S20 | ||
| Y40Mn | A40Г | C1144 | 225M36 | 45MF2 | 40S20 | ||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| wear resistant | ZGMn13 | 116Г13Ю | SCMnH11 | Z120M12 | X120Mn12 | ||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| T7 | y7 | W1-7 | SK7,SK6 | C70W1 | |||
| Carbon | T8 | y8 | SK6,SK5 | ||||
| T8A | y8A | W1-0.8C | 1104Y175 | C80W1 | |||
| Tool | T8Mn | y8Г | SK5 | ||||
| T10 | y10 | W1-1.0C | D1 | SK3 | |||
| Steel | T12 | y12 | W1-1.2C | D1 | SK2 | Y2 120 | C125W |
| T12A | y12A | W1-1.2C | XC 120 | C125W2 | |||
| T13 | y13 | SK1 | Y2 140 | C135W | |||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| 8MnSi | C75W3 | ||||||
| 9SiCr | 9XC | BH21 | 90CrSi5 | ||||
| Cr2 | X | L3 | 100Cr6 | ||||
| Alloy | Cr06 | 13X | W5 | SKS8 | 140Cr3 | ||
| 9Cr2 | 9X | L | 100Cr6 | ||||
| W | B1 | F1 | BF1 | SK21 | 120W4 | ||
| Tool | Cr12 | X12 | D3 | BD3 | SKD1 | Z200C12 | X210Cr12 |
| Cr12MoV | X12M | D2 | BD2 | SKD11 | Z200C12 | X165CrMoV46 | |
| 9Mn2V | 9Г2Φ | 02 | 80M80 | 90MnV8 | |||
| Steel | 9CrWMn | 9XBГ | 01 | SKS3 | 80M8 | ||
| CrWMn | XBГ | 07 | SKS31 | 105WC13 | 105WCr6 | ||
| 3Cr2W8V | 3X2B8Φ | H21 | BH21 | SKD5 | X30WC9V | X30WCrV93 | |
| 5CrMnMo | 5XГM | SKT5 | 40CrMnMo7 | ||||
| 5CrNiMo | 5XHM | L6 | SKT4 | 55NCDV7 | 55NiCrMoV6 | ||
| 4Cr5MoSiV | 4X5MΦC | H11 | BH11 | SKD61 | Z38CDV5 | X38CrMoV51 | |
| 4CrW2Si | 4XB2C | SKS41 | 40WCDS35-12 | 35WCrV7 | |||
| 5CrW2Si | 5XB2C | S1 | BSi | 45WCrV7 | |||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| W18Cr4V | P18 | T1 | BT1 | SKH2 | Z80WCV | S18-0-1 | |
| High | 18-04-01 | ||||||
| W6Mo5Cr4V2 | P6M3 | N2 | BM2 | SKH9 | Z85WDCV | S6-5-2 | |
| Speed | 06-05-04-02 | ||||||
| W18Cr4VCo5 | P18K5Φ2 | T4 | BT4 | SKH3 | Z80WKCV | S18-1-2-5 | |
| Steel | 18-05-04-01 | ||||||
| W2Mo9Cr4VCo8 | M42 | BM42 | Z110DKCWV | S2-10-1-8 | |||
| 09-08-04-02-01 |
