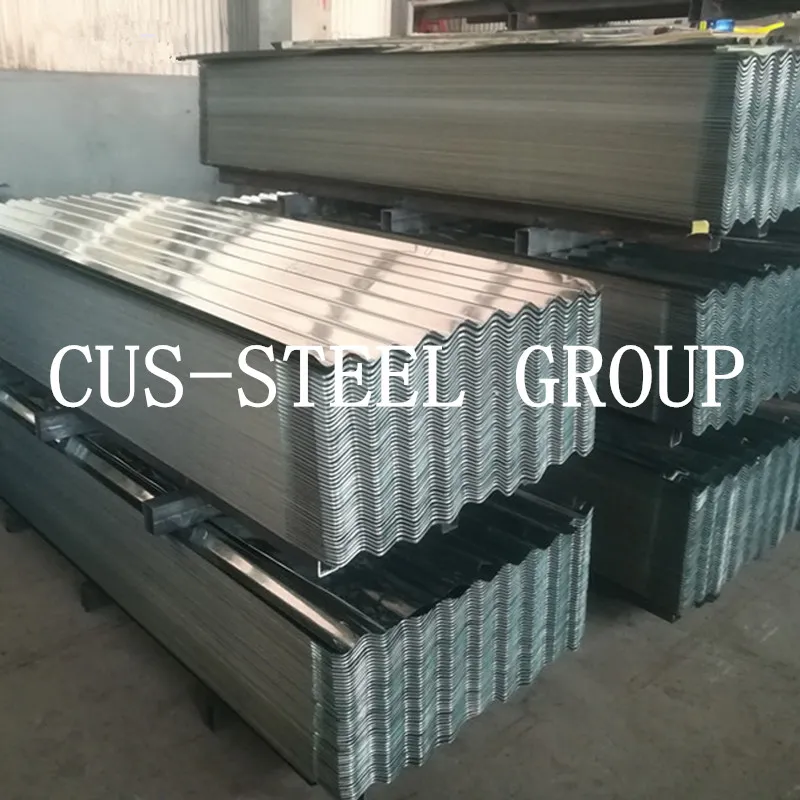

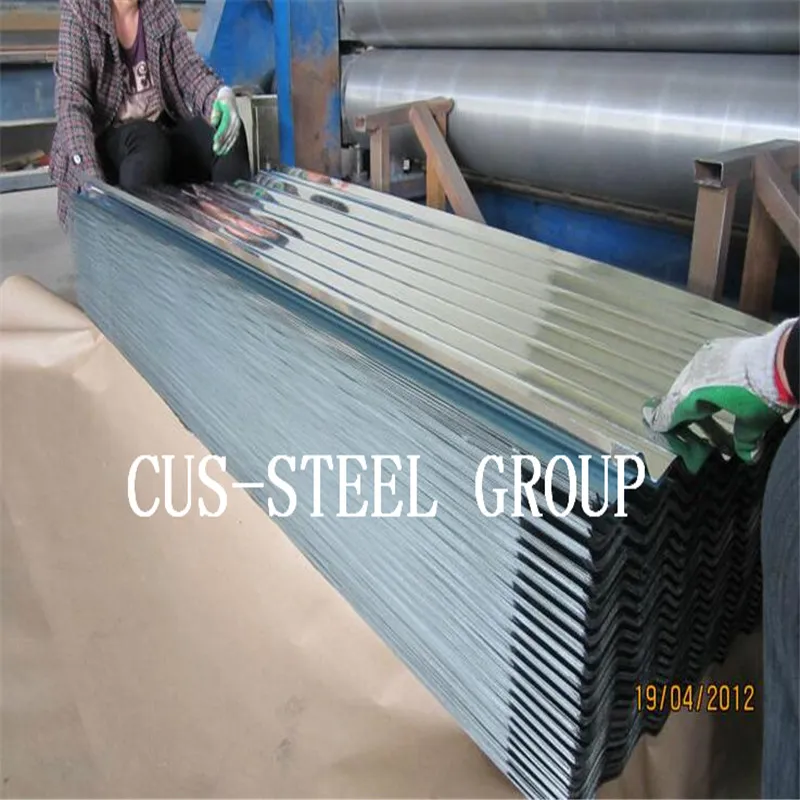

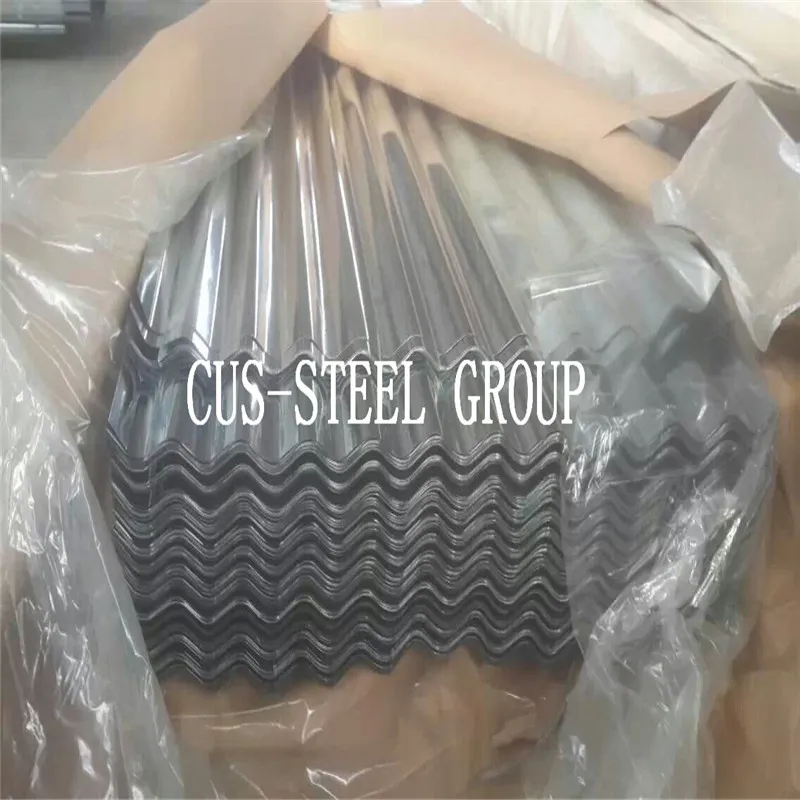

Peru Regular Spangle Zinc Coating Gi Corrugated Roofing Iron Sheet

Product Description

1. Brief Introduction
It is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to
insulate it from the elements. Most of the corrugated roofing and siding products seen today
and for many years past are made with a galvanized finish

2. Roofing Sheet Finish
As with almost any product the finish of the galvanized metal finish will change over time. After
a period of time, the surface will appear to have a white oxide look. When this happens the
material is actually protecting itself from further damage. We stock and sell several corrugated
and decking panels in either a (G-60) or (G-90) level of galvanizing

3. Application scope
It is most commonly used for commercial, agricultural, and industrial purposes, however, it is
now also being recognized as an excellent form of residential roofing

4. Advantages
A normal steel sheet will rust almost immediately, but galvanizing will protect the steel. This
galvanized, eltro-coated, hot-dipped process produces a silvery look or spangled finish. As
a standard, several of our industrial metal siding, metal roofing, metal decking, corrugated
metal panels and accessories are made in galvanized steel

5. Technical Processing
Hot rolled steel coil -->Cold rolled- >hot dipped galvanized/ galvalume- > corrugated-->packing

6. Common size as follows
1) 762mm to 665mm(ater corrugated)and 9 waves
2) 914mm to 750mm(after corrugated)and 11 waves
3) 1000mm to 890 or 900mm(after corrugated and12or14waves

Product	Hot Dipped Galvanized Corrugated Steel Iron Roofing Sheet
Base material	Hot dipped galvanized steel sheet; Hot dipped galvalume steel sheet
Material Grade	SGCC / SGCH / DX51D+Z / DX51D+AZ, etc
Thickness	0.12-0.8mm
Width before corrugation	750mm,762mm,800,900mm,914mm,1000mm ,1200mm
Tolerance	Thickness: +/-0.02mm Width:+/-2mm
Zinc-coating	60g/m2-275g/m2(G30-G60).
Technique	Hot rolled steel coil > Cold rolled>hot dipped galvanized>corrugated
Terms	Raw material width 762mm,after corrugated width 665mm:9 waves Raw material width 914mm,after corrugated width 800mm:11 waves Raw material width 1000mm,after corrugated 890/900mm:12 or 14 waves
Feature	Roofing Steel Sheet have excellent performance of decoration, corrosion resistance etc.

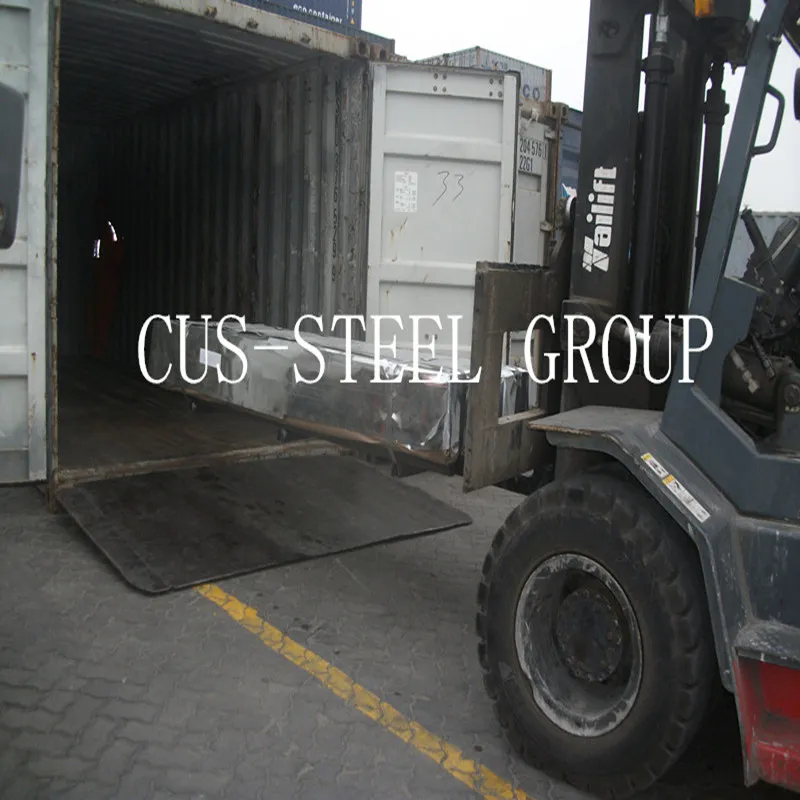

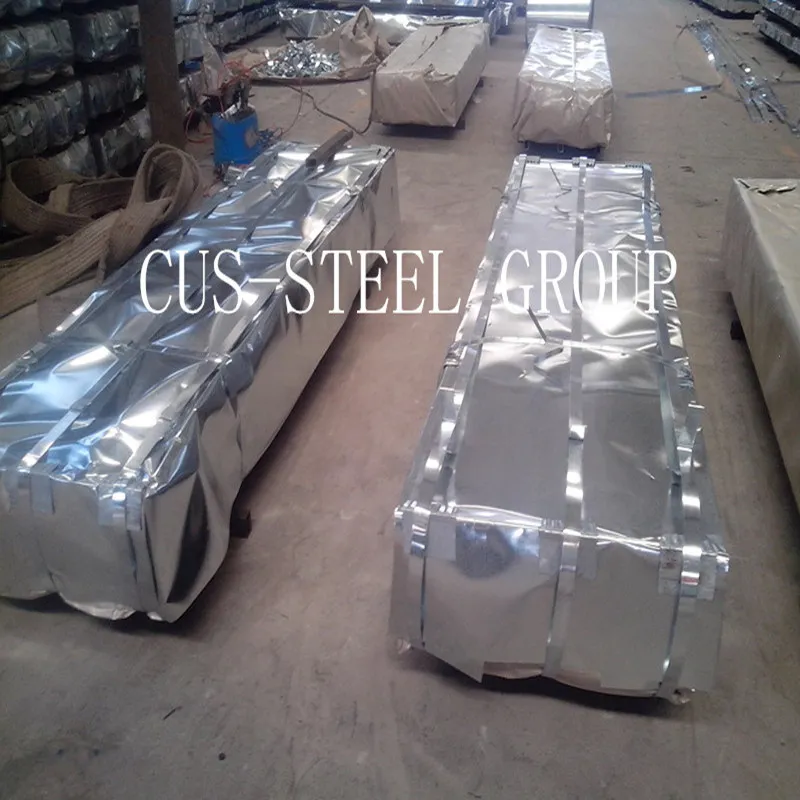

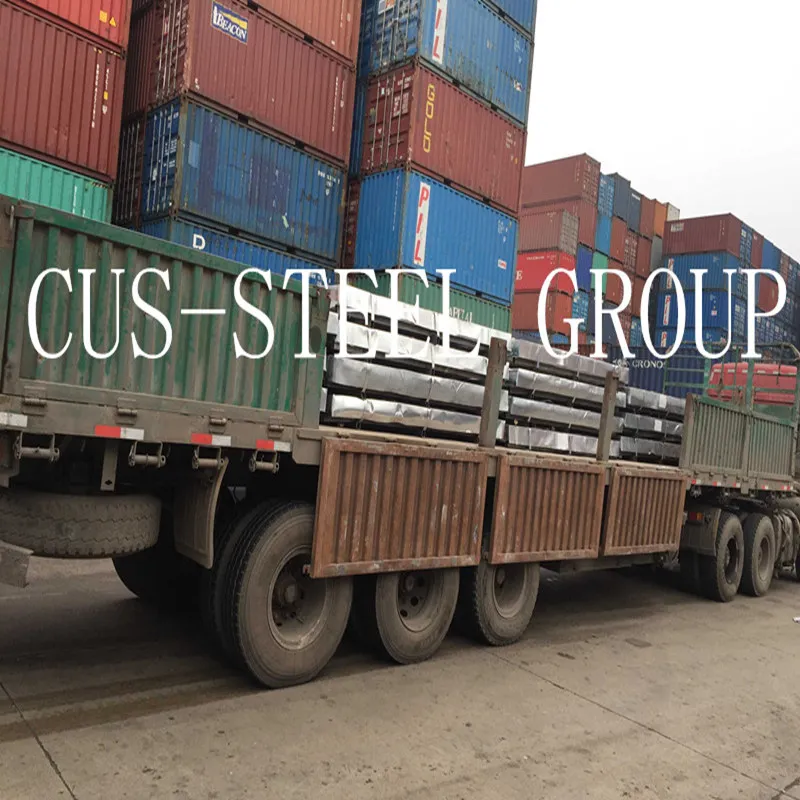

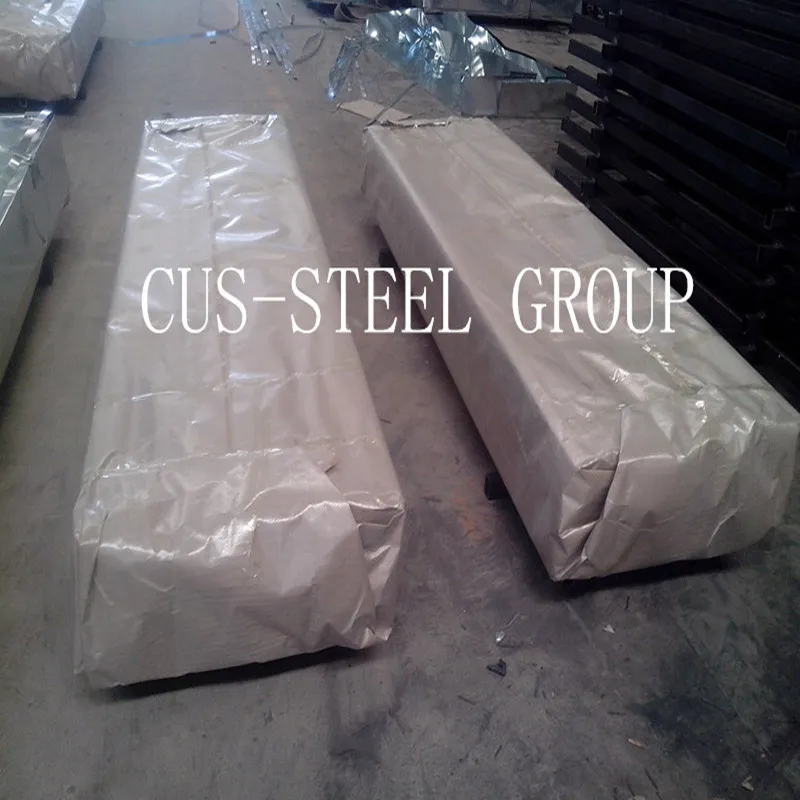

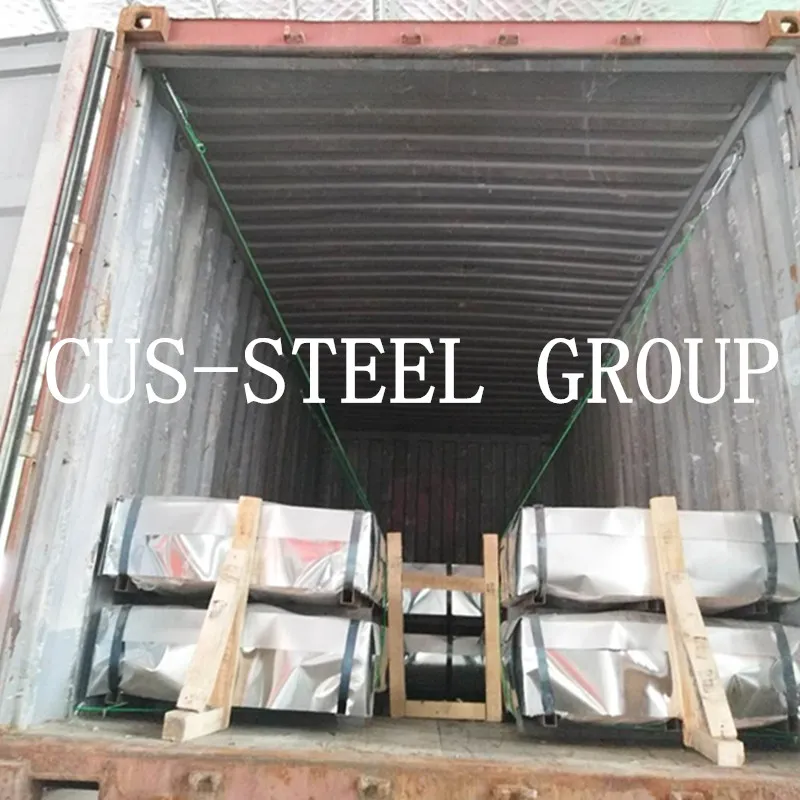

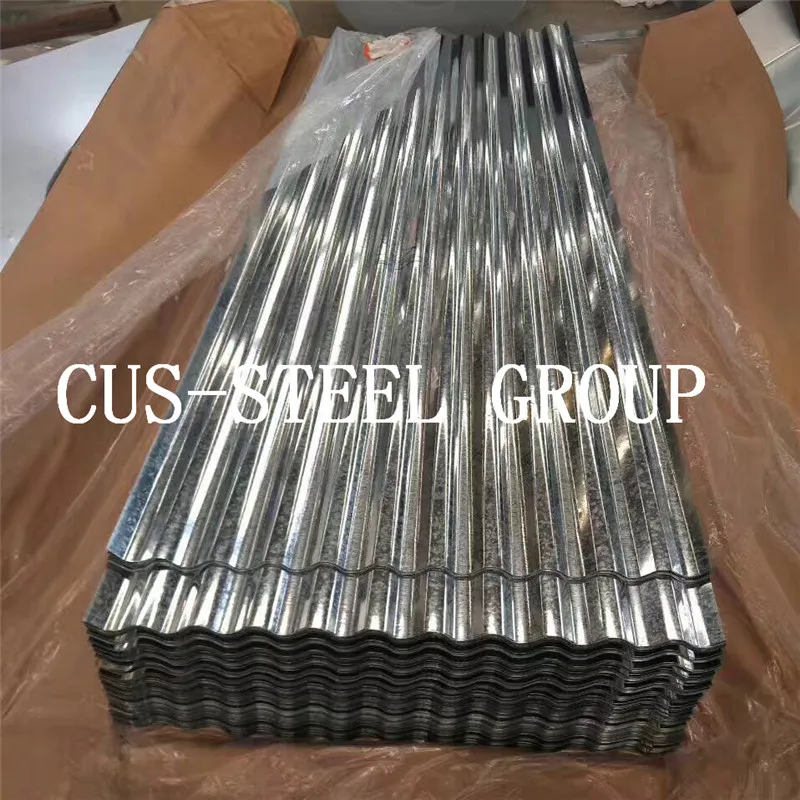

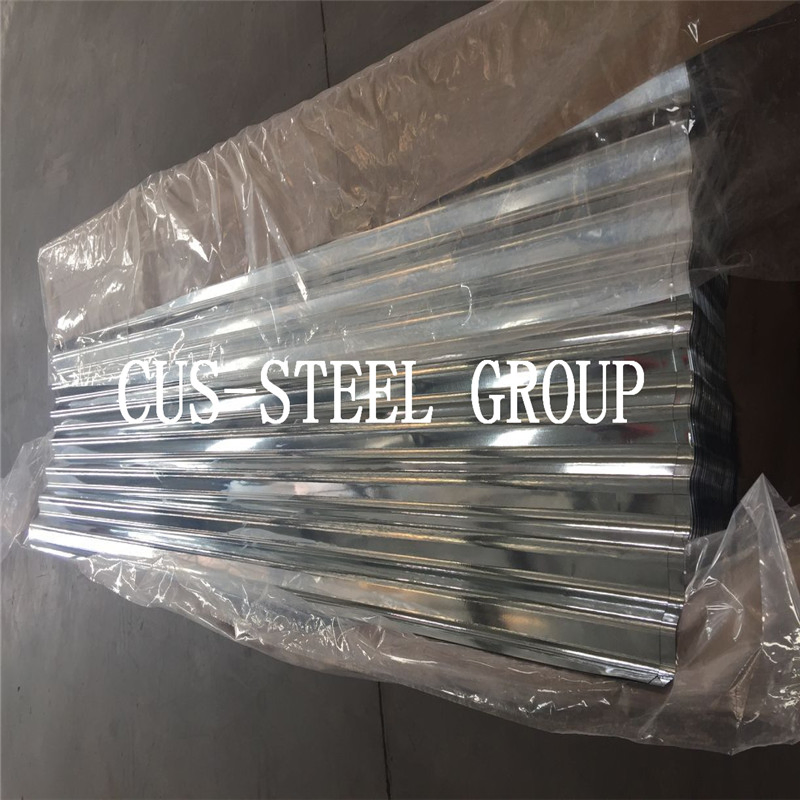

Export package	Waterproof paper, galvanized steel covered and steel strip packed
