Best Quality Monel 400 Rolled Plate Alloy China Nickel Alloy Sheet

Product Description

Brief Introduction
This Clad Metal Plate is combined and processed by the explosion welding, which are widely used in the pressure vessel, condenser, heat exchange, bolier, reactor ect in Petrochemical, Chemical industry, Foodstuff, Water Conservancy, etc.
In order to get resisance to the corrosion and heat, steel clad materials are explosively welded to the relatively carbon steel, in this way, we can reduce the cost, in the meantime, the surface attched on the servere environment can endure the life time of the main equipment.
The bonding quality between the dissimiliar metals is strong enough to keep away from debonding or any extermal stress such as heat, bending, vibration or hard impact.
The thickness ratio of base metal to clad metal is basically on the requirement of design and application, generally, the ratio 3:1 or more is recommended, others thickness ratio is also available upon negotiaton.

Applicable Materials Detail Informations:

Two-layered Clad Plate
Product	Materials	Specification (mm)	Production Code	Application
Ti/Steel Clad	Gr.1,Gr.2,Gr.7, Gr.12/Gr.60(N),Gr.70(N)	(1.5~12+2~200)<25006000	ASTM B898	Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical etc.
Ti/Stainless Steel Clad	Gr.1,Gr.2,Gr.7, Gr.12/304L,316L ,410S etc.	(1.5~12+2~120)<20006000	ASTM B898	Petro-chemical,Chlor-alkali, Space, Food, Light Industry, Medicine etc.
Ti/Al Clad	Gr.1,Gr.2,Gr.7, Gr.12/2117,5052 etc.	(1.5~12+2~50)<15004000	Negotiable	Aerospace, Kitchenware, Chemical Industry, Ship,etc.
Ti/Cu Clad	Gr.1,Gr.2,Gr.7, Gr.12/C11000,C10200 etc.	(1.5~12+2~100)<20004000	Negotiable	Power Industry, Electrolysis Industry, Hydrometallurgy etc.
Ti/Ni Clad	Gr.1,Gr.2,Gr.7, Gr.12/N02201,N02200	(1.5~12+2~50)<20004000	ASTM B898	Metallurgical Industry etc.
Ni/Steel Clad	N02201,N0220,B-3,C-22,Monel/Gr.60(N),Gr.70(N)	(2~20+12~100)<2000<5000	ASTM SA-265	Chlor-alkali, Petro-chemical, Pulping, etc.
Cu/Steel Clad	C11000,C10200/Gr.60(N),Gr.70(N)	(3~20+12~100)<2000<5000	Negotiable	Chemical Industry, Auto Industry etc.
Cu/Stainless Steel Clad	C11000,C10200/304L,316L,410S etc.	(3~20+12~100)<2000<5000	Negotiable	Kitchenware, Power Industry, Building Materials etc.
Al/Steel Clad	2117,5052 etc./Gr.60(N),Gr.70(N)	(1~12+2~100)<2000<4000	Negotiable	Electrolytic Aluminum, Fertilizer etc.
Al/Cu Clad	2117,5052 etc./C11000,C10200	(1~12+2~50)<2000<4000	Negotiable	Power Industry, Electronics Industry etc.
Al/Stainless Steel Clad	2117,5052 etc./304L,316L,410S etc.	(1~12+2~100)<2000<4000	Negotiable	Auto Industry, Vacuum Salt Industry, Pulping, Painting etc.
Ferrite Stainless/Steel Clad	410S,415/Gr60(N),Gr70(N) etc.	(2~20+2~120)<2500 7000	SA 263	Petro-chemical, Vacuum Salt Industry,, Fetilizer, Hydropower Industry, Pulping etc.
Austenitic Stainless/Steel Clad	304,304L,316,316L,321 etc./ Gr60(N),Gr70(N),SA387Gr.22 etc.	(2~20+2~120)<25007000	SA 264
Highly Alloyed Stainless/Steel Clad	Al-6XN,904L,S31803etc./ Gr60(N),Gr70(N) etc.	(2~20+2~120)<25007000	SA264
Three-layered Clad Plate
Stainless/Steel/Stainless Clad	304,304L,316,316L etc./Gr55(N),Gr70(N) etc./304,304L,316,316L etc.	(2~10+2~100+6~10)	SA264	Petro-chemistry, Chemical Industry, Medicine etc.
Ti/Steel/Stainless Steel Clad	Gr.1,Gr.2/Gr55(N),Gr70(N) etc./304,304L,316,316L etc.	(2~10+2~100+0.1~10)	ASTM B898
Cu/Al/Cu Clad	C11000,C10200/2117,5052 etc./C11000,C10200	(3~10+2~100+0.1~10)	Negotiable
Al/Ti/Steel Clad	2117,5052etc./Gr.1,Gr.2/Gr55(N),Gr70(N)	(2~20+2+3~100)	ASTM B898
Ti/Cu/Ti Clad	Gr.1/C11000/Cr.1	(2+2~20+2)	ASTM B898
Zr/Ti/Steel Clad	R60700,R60702/Gr.1,Gr.2/Gr55(N),Gr70(N)	(2+2+10~)	ASTM B898	Chemical Industry, Acetic Acid Project etc.

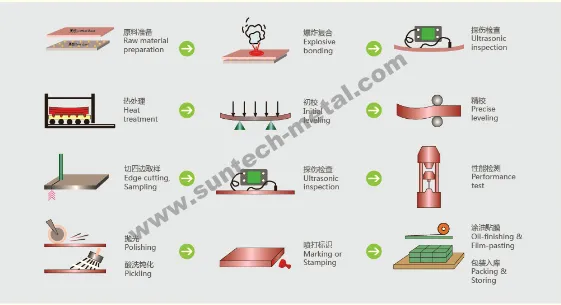

Production Proedure:
Best Quality Monel 400 Rolled Plate Alloy China Nickel Alloy Sheet

The clad plates/metals we supply cover the following categories:
Stainless steel clad plates;
Duplex steel clad plates;
Titanium and steel clad plates;
Nickel and steel clad plates;
Zirconium and steel clad plates;
Copper and steel clad plates;
Copper and Aluminum clad plates;
Aluminum and steel clad plates;
Titanium and copper clad plates;
5-layered Steel/Titanium/Nickel/Aluminum clad plates.

FAQ
Q1:Are you a factory or trading company?
A: We are a factory.

Q2: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry if you are urgent to get the price. Please call us or tell us in your email so that we will regard your inquiry priority.

Q3: How can I have a Proforma Invoice or Quotation?
A: You can have Proforma Invoice/Quotation either by providing us the list of your requirements through fax, email or by sending an enquiry.

Q4: What are your payment terms?
A: Our company accept the peayment of T/T, L/C. If your payment terms is special, please inform us in advance

Q5: How does your factory regard quality control?
A: Quality is priority, we always attach great importance to quality control from raw materials to the very end. Our factory has gained SGS, ISO and FAD authentication.
