ASTM A108 Q235B High Temperature Resistant Cold Drawn Carbon Steel Bar Stainless Steel Carbon Steel Bar Steel Structure Stainless Steel Rod Auto Parts Steel Bar
Company ProfileEstablished in 2009, Zhuji Hengchuan Trading Co., Ltd is a professional supplier for conveyor parts, located in Zhejiang province. We focus on supplying a variety of conveyor parts, including conveyor tubes, conveyor frames, conveyor rollers, bearing housings and so forth.With our pr......
Send Inquiry
Product Description
Company Profile
Established in 2009, Zhuji Hengchuan Trading Co., Ltd is a professional supplier for conveyor parts, located in Zhejiang province. We focus on supplying a variety of conveyor parts, including conveyor tubes, conveyor frames, conveyor rollers, bearing housings and so forth.
With our professional technology R&D team, and experienced quality control department, our products have been awarded the ISO9001 Quality Management System Standard and our main markets are in America, Europe, Asia and Australia.
With our professional technology R&D team, and experienced quality control department, our products have been awarded the ISO9001 Quality Management System Standard and our main markets are in America, Europe, Asia and Australia.
Factory advantage | Professional and experienced technology team | ||
| All products inspected before shipping with reasonable prices | |||
| Low MOQ and free sample | |||
| We are audited by SGS and passed the ISO9001:2008 certification | |||
Industries service | Industrial machine | ||
| Electronic and communication | |||
| Oil, gas,mining and petroleum | |||
| Construction industry | |||
| Equipment | CNC Machining Center, CNC Lathes, CNC Milling Machines, Punching and drilling machines, Stamping machines | ||
| Precision Processing | CNC machining, CNC turning and milling, laser cutting, drilling, grinding, bending, stamping, welding | ||

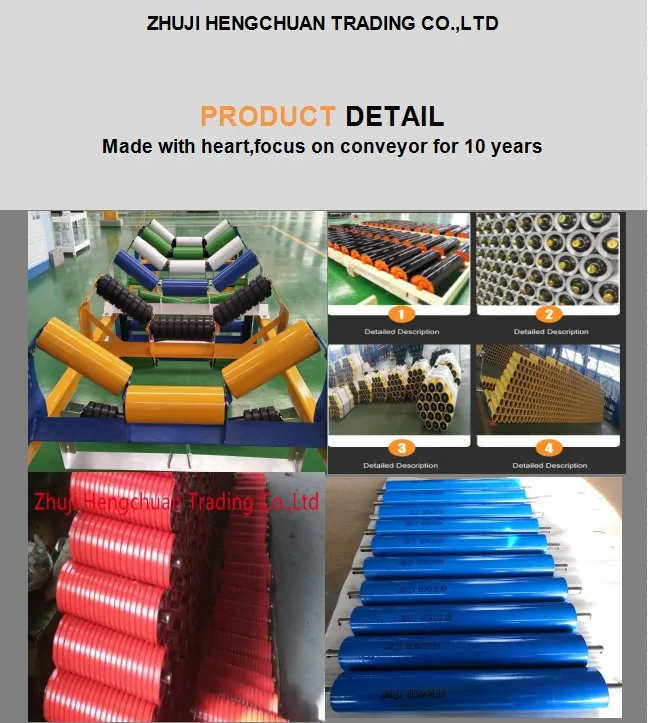

Roller size
| No. | Standard Diameter | Length Range (mm) | Bearing Type Min-Max | Shell Thickness of Roller | |
| mm | Inch | ||||
| 1 | 63.5 | 2 1/2 | 150-3500 | 203 204 | 3.0mm-4.0mm |
| 2 | 76 | 3 | 150-3500 | 204 | 3.0mm-4.5mm |
| 3 | 89 | 3 1/3 | 150-3500 | 204 205 | 3.0mm-4.5mm |
| 4 | 102 | 4 | 150-3500 | 204 205 206 305 | 3.2mm-4.5mm |
| 5 | 108 | 4 1/4 | 150-3500 | 204 205 206 305 306 | 3.5mm-4.5mm |
| 6 | 114 | 4 1/2 | 150-3500 | 204 205 206 305 306 | 3.5mm-4.5mm |
| 7 | 127 | 5 | 150-3500 | 204 205 206 305 306 | 3.5mm-5.0mm |
| 8 | 133 | 5 1/4 | 150-3500 | 204 205 206 207 305 306 | 3.5mm-5.0mm |
| 9 | 140 | 5 1/2 | 150-3500 | 205 206 207 305 306 307 | 3.5mm-5.0mm |
| 10 | 152 | 6 | 150-3500 | 205 206 207 305 306 307 308 | 4.0mm-5.0mm |
| 11 | 159 | 6 1/4 | 150-3500 | 205 206 207 305 306 307 308 | 4.0mm-5.0mm |
| 12 | 165 | 6 1/2 | 150-3500 | 206 207 305 306 307 308 | 4.5mm-6.0mm |
| 13 | 177.8 | 7 | 150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
| 14 | 190.7 | 7 1/2 | 150-3500 | 207 306 307 308 309 310 | 4.5mm-7.0mm |
| 15 | 194 | 7 5/8 | 150-3500 | 207 306 307 308 309 310 | 4.5mm-8.0mm |
| 16 | 219 | 8 5/8 | 150-3500 | 308 309 310 312 | 4.5mm-8.0mm |
Advantage:
1.The life time: More than 50000 hours
2. TIR (Total Indicator Runout)
0.5mm (0.0197") for Roll Length 0-600mm
0.8mm (0.0315") for Roll Length 601-1350mm
1.0mm (0.0394") for Roll Length over 1350mm
3.Shaft Float≤0.8mm
4..Samples for testing are available.
5. Lower resistance
6. Small maintain work
7. High load capability
8. Dust proof & water proof
1.The life time: More than 50000 hours
2. TIR (Total Indicator Runout)
0.5mm (0.0197") for Roll Length 0-600mm
0.8mm (0.0315") for Roll Length 601-1350mm
1.0mm (0.0394") for Roll Length over 1350mm
3.Shaft Float≤0.8mm
4..Samples for testing are available.
5. Lower resistance
6. Small maintain work
7. High load capability
8. Dust proof & water proof

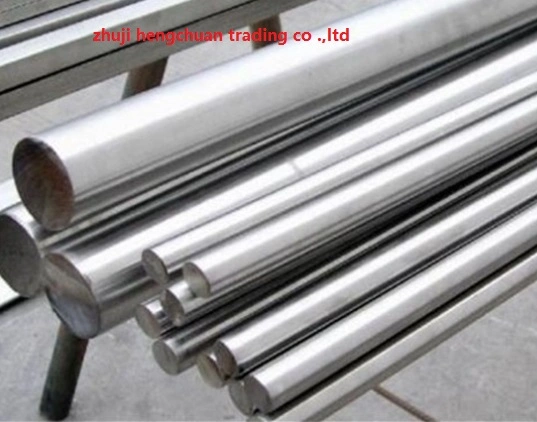

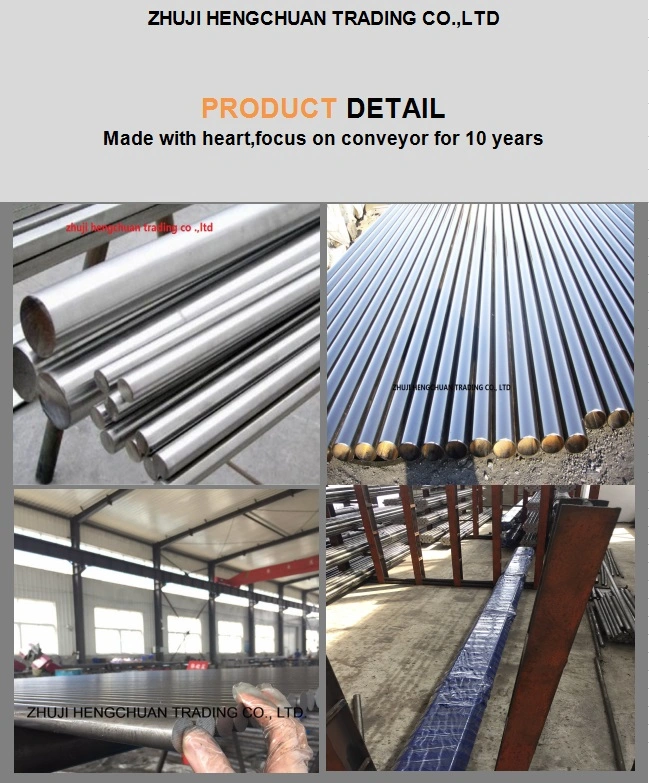

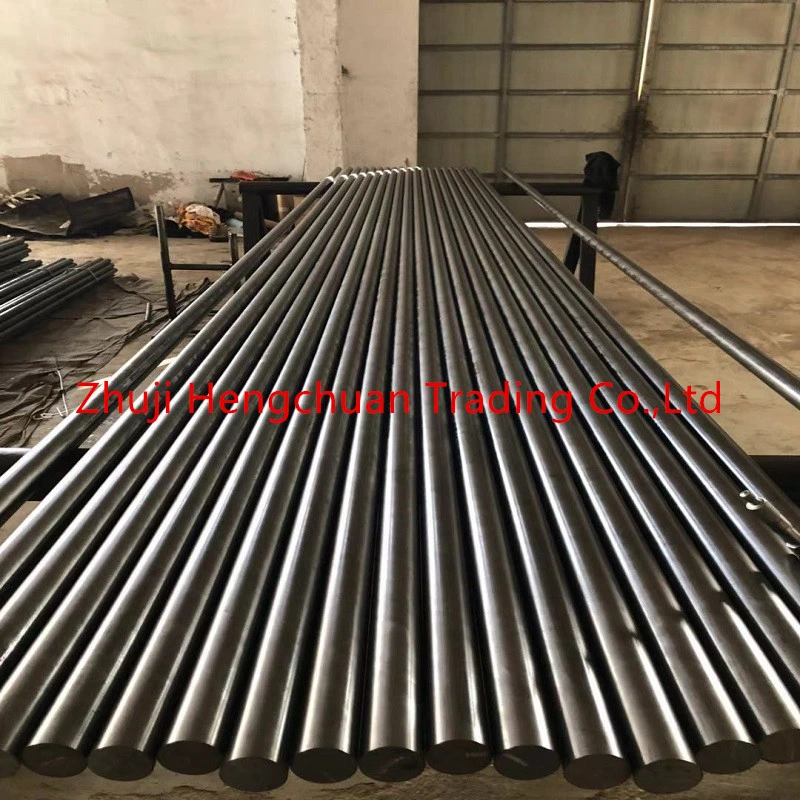

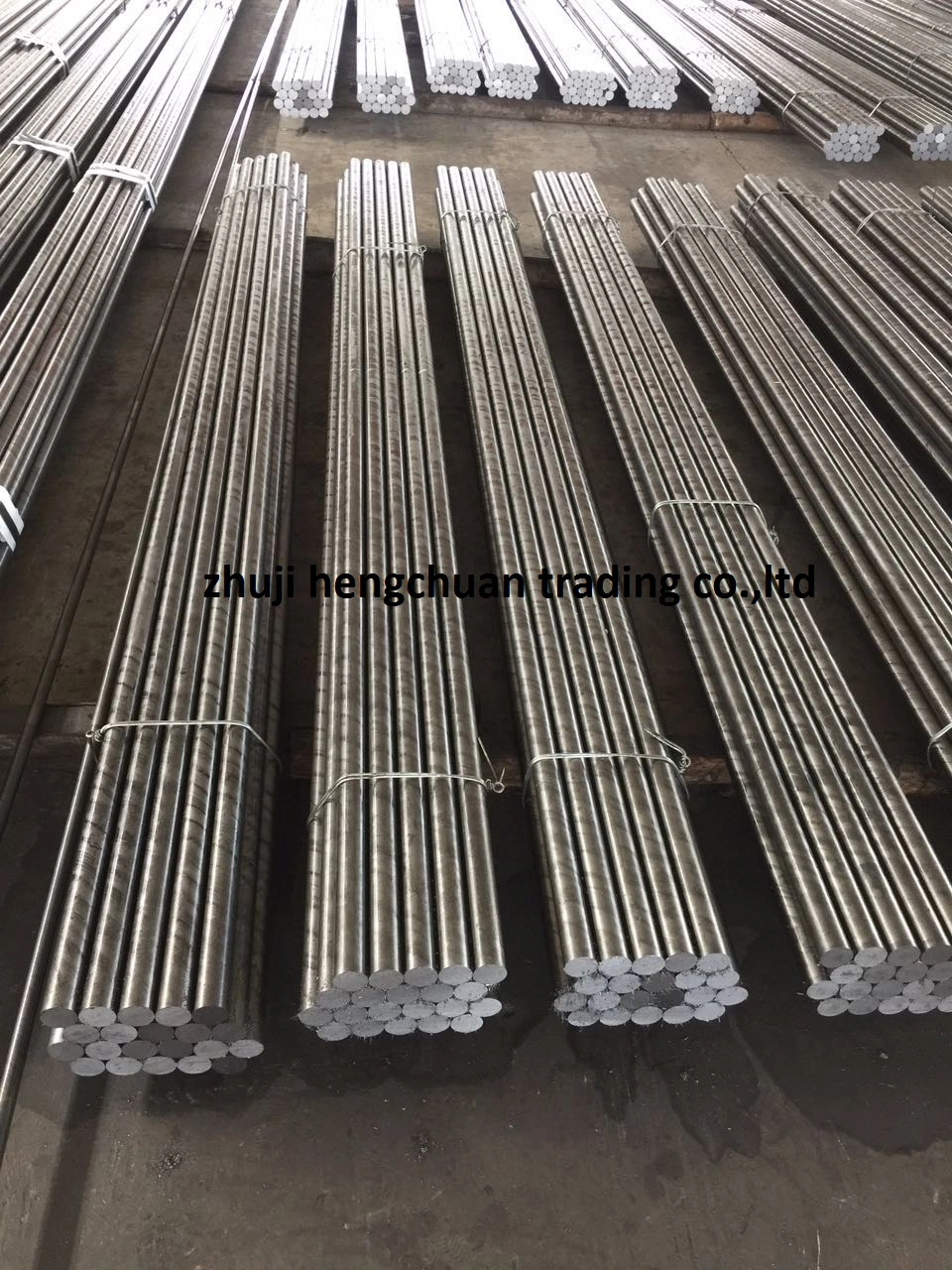

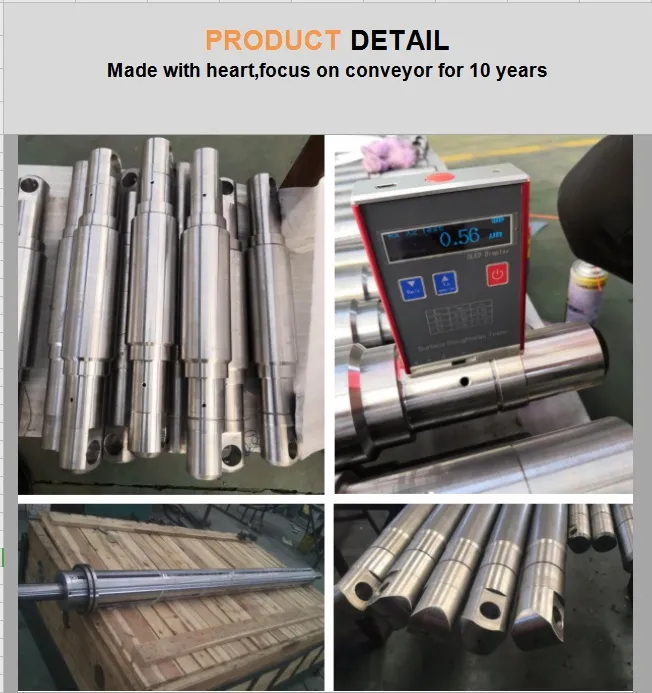

CONVRYOR ROLLER SHAFTS
| We can produce roller shafts and We do customeized |
| Product Size:φ10mm - 70mm |
| Max Length: 3000mm |
| Surface Tolerance: g6 |
| Surface Roughness:0.8mm |
| Specification | ASTM A108 AS1443 |
| Steel Grade | Q235B,C1020,C1045(we can also do other steel grade per your requirments) |
| Size | Φ18mm-φ62mm |
| Diameter Tolerance | ISO286-2,H7/H8 |
| Straightness | 2000:1 |
| O.D | 63.5-219.1mm |
| W .T | 0.45-20mm |
| Length | 6--12m |
| Standard | SANS 657/3,ASTM 513,AS 1163,BS6323,EN10305 |
| Material | Q235B, S355,S230,C350,E235 etc. |
| Technique | Welded,Seamless |
| Surface | oiled ,galvanized or painted with all kinds of colors according to client's request. |
| Ends | 1.Plain ends, |
| 2.Threading at both side with plastice caps | |
| 3.Threading at both side with socket/coupling. | |
| 4.Beveled ends, and so on | |
| Packing | 1.Water-proof plastic cloth, |
| 2.Woven bags, | |
| 3.PVC package, | |
| 4.Steel strips in bundles | |
| 5.As your requirment | |
| Usage | 1.For low pressure liquid delivery such as water,gas and oil. |
| 2.For construction | |
| 3.Mechanical equipment | |
| 4.For Furniture | |
| Payment&Trade Terms | 1.Payment : T/T,L/C, D/P, Western union |
| 2.Trade Terms:FOB/CFR/CIF | |
| 3.Minimum quantity of order : 10 MT (10,000KGS) | |
| Delivery Time | 1.Usually,within10-20days after receiving your down payment. |
| 2.According to the order quantity |

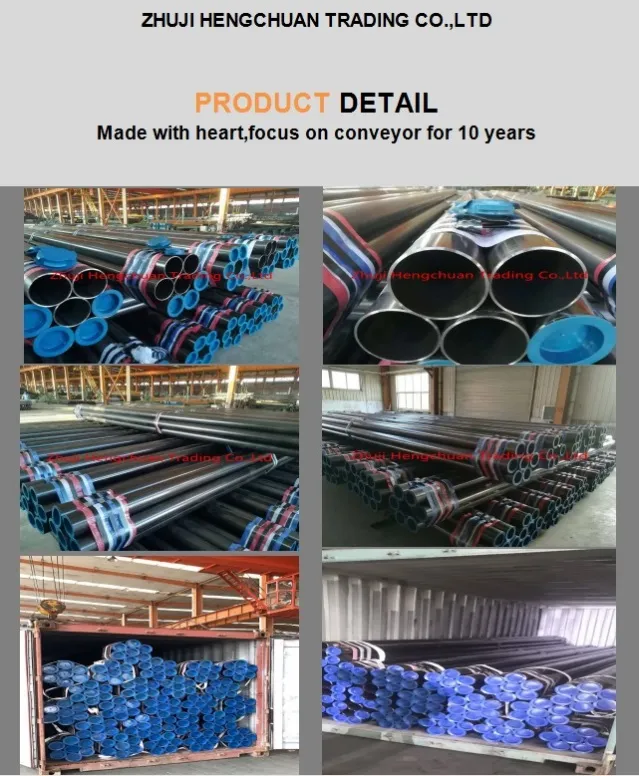

Conveyor Roller Tube
Conveyor Roller Tube | Specification | SANS657/3,ASTM513,AS1163,BS6323,EN10305 or equivalent international standard. |
| Steel grade | S355/S230,C350,E235,Q235B | |
| Sizes | 63.5mm-219.1mm ect | |
Ovality tolerance of body | ≤0.4mm(60.3mm-152.4mm) | |
| ≤0.5mm(159MM-168.3mm) | ||
| ≤0.6mm(178mm-219mm) | ||
| Straightness | 2000:1 |
