China SKD11 D2 Special Steel Flat Bar Tool Steel Plate

Product Description

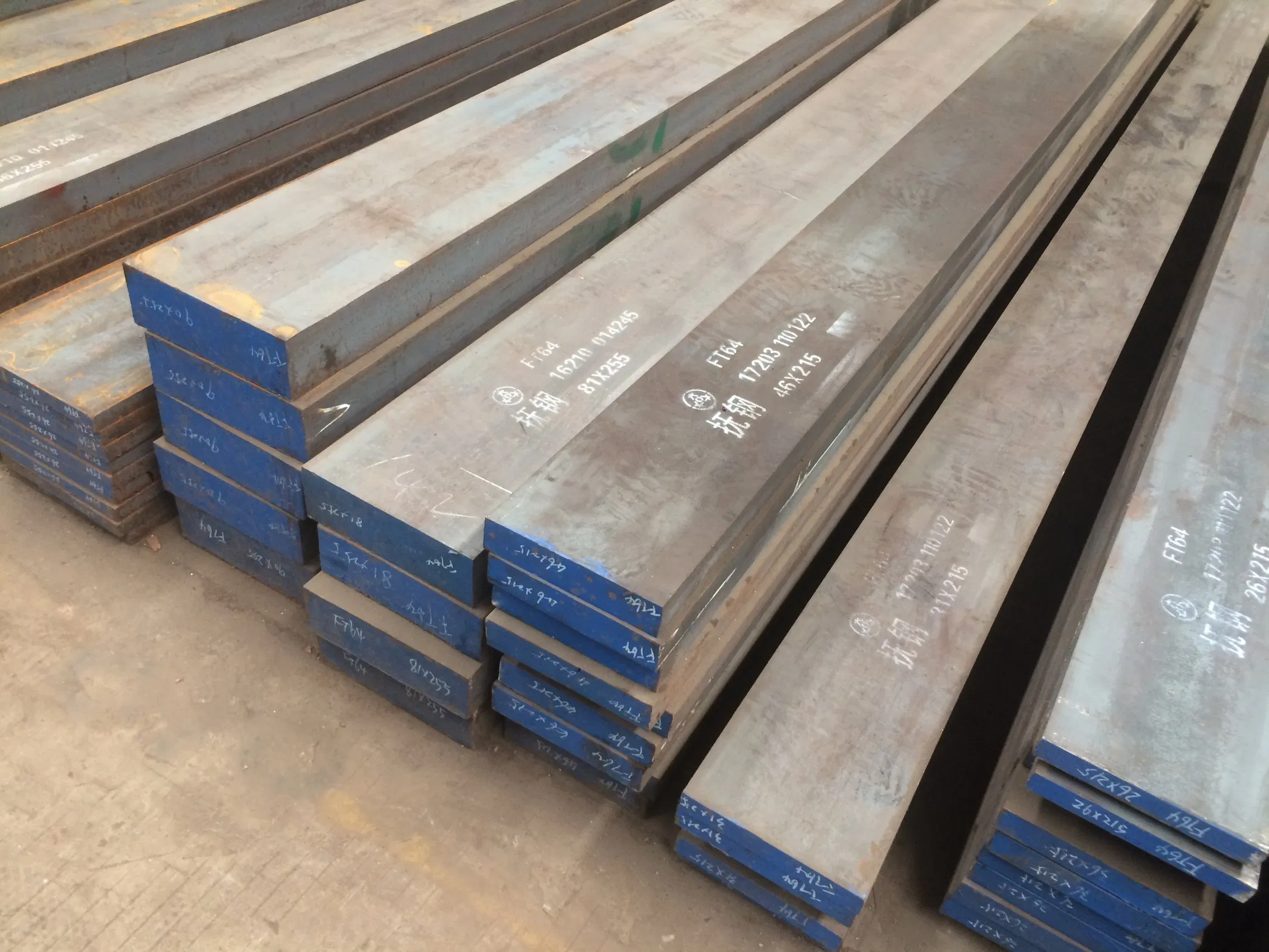

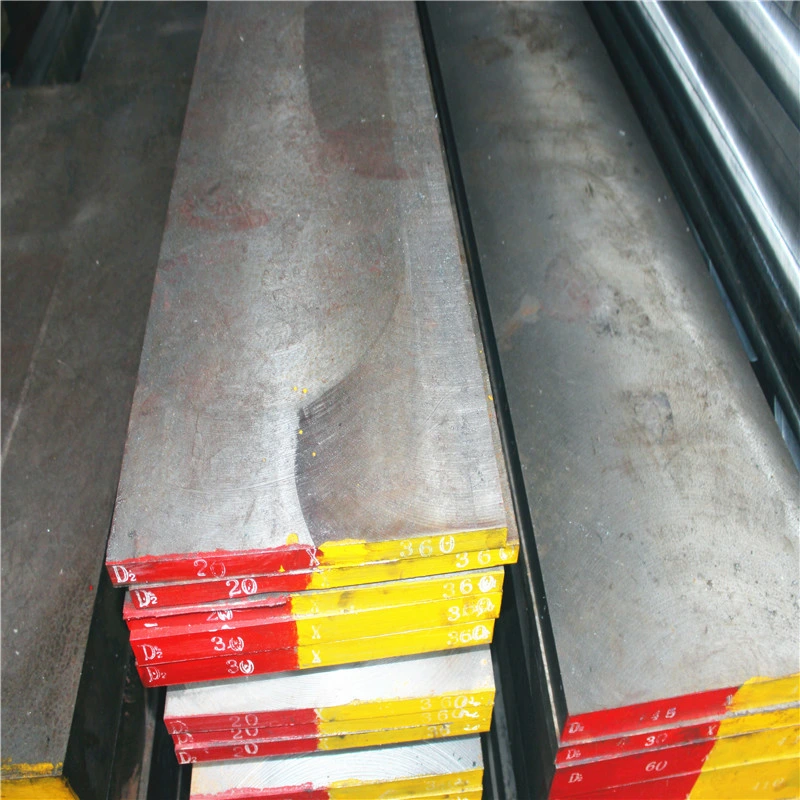

SKD11 D2 Special Steel Flat Bar Tool Steel Plate

D2 steel is a high wear resistant micro deformation cold working die steel, belonging to air hardening tool steel. With high quality fraction of carbon and high chronic, the hardness can up to 60HRC after heat treatment, but malleability,toughness,rust resistance is not good and the surface of the steel is also difficult to be polished.

With the development of cold stamping products moving towards high accuracy,high efficiency, varieties, we require the mould steel should has good wear resistance and high toughness.

Compared with Cr12MoV steel, this D2 die steel adds Mo,V compositions,changed the steel cast structure, improved the morphology of ledeburite , toughness and wear resistance are better than Cr12MoV steel, improved the service life as well.Because of the yield point and plastic deformation resistance is higher than Cr12MoV steel, so that forging performance and hot molding properties are a little weak than Cr12MoV steel.

Features

High wear resistance
High compressive strength
Good dimensional stability
Good processability
Excellent resistance to temper softening
Good toughness

Equal Standards

Chinese	American	German	Japanese
GB	AISI	DIN	JIS
Cr12Mo1V1	D2	1.2379	SKD11

Chemical Composition

Grades	C	Si	Mn	P	S	Cr	Mo	V
1.2379	1.5-1.6	0.1-0.4	0.15-0.45	≤0.003	≤0.03	11-12	0.6-0.8	0.9-1.1
D2	1.4-1.6	0.3-0.5	0.3-0.5	≤0.03	≤0.03	11-13	0.7-1.2	0.8
Cr12Mo1V1	1.4-1.6	≤0.6	≤0.6	≤0.03	≤0.03	11-13	0.7-1.2	0.5-1.1
SKD11	1.4-1.6	≤0.4	≤0.6	≤0.03	≤0.03	11-13	0.8-1.2	0.2-0.5

Heat Treatment

Quenching			Tempering
Heating Temperature/ºC	Cooling	Hardness/HRC	Heating Temperature/ºC	Cooling	Hardness/HRC
980-1040	Oil or air	60-65	180-220	Air	60-64
1060-1100	Oil or air	60-65	510-540	Air	60-64

Applications
Blanking Mold
Roller
bending mold
Cutting tool&knife
Stock Size

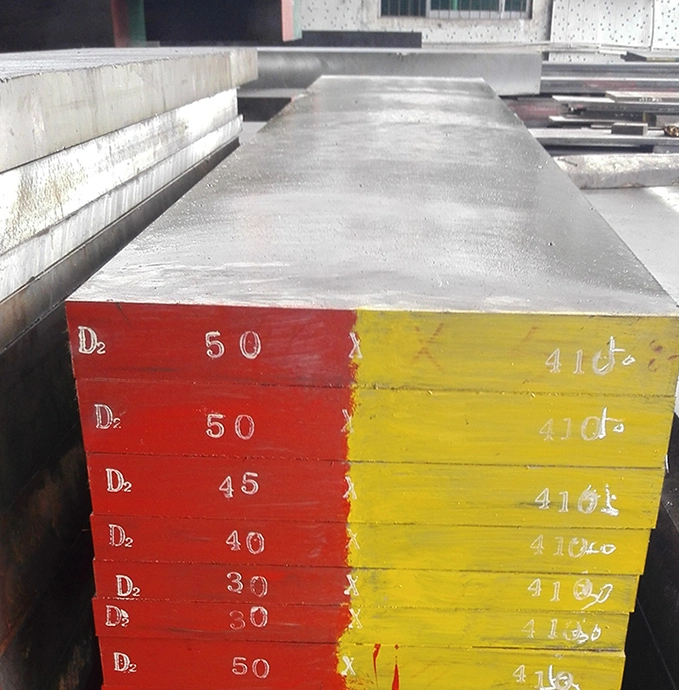

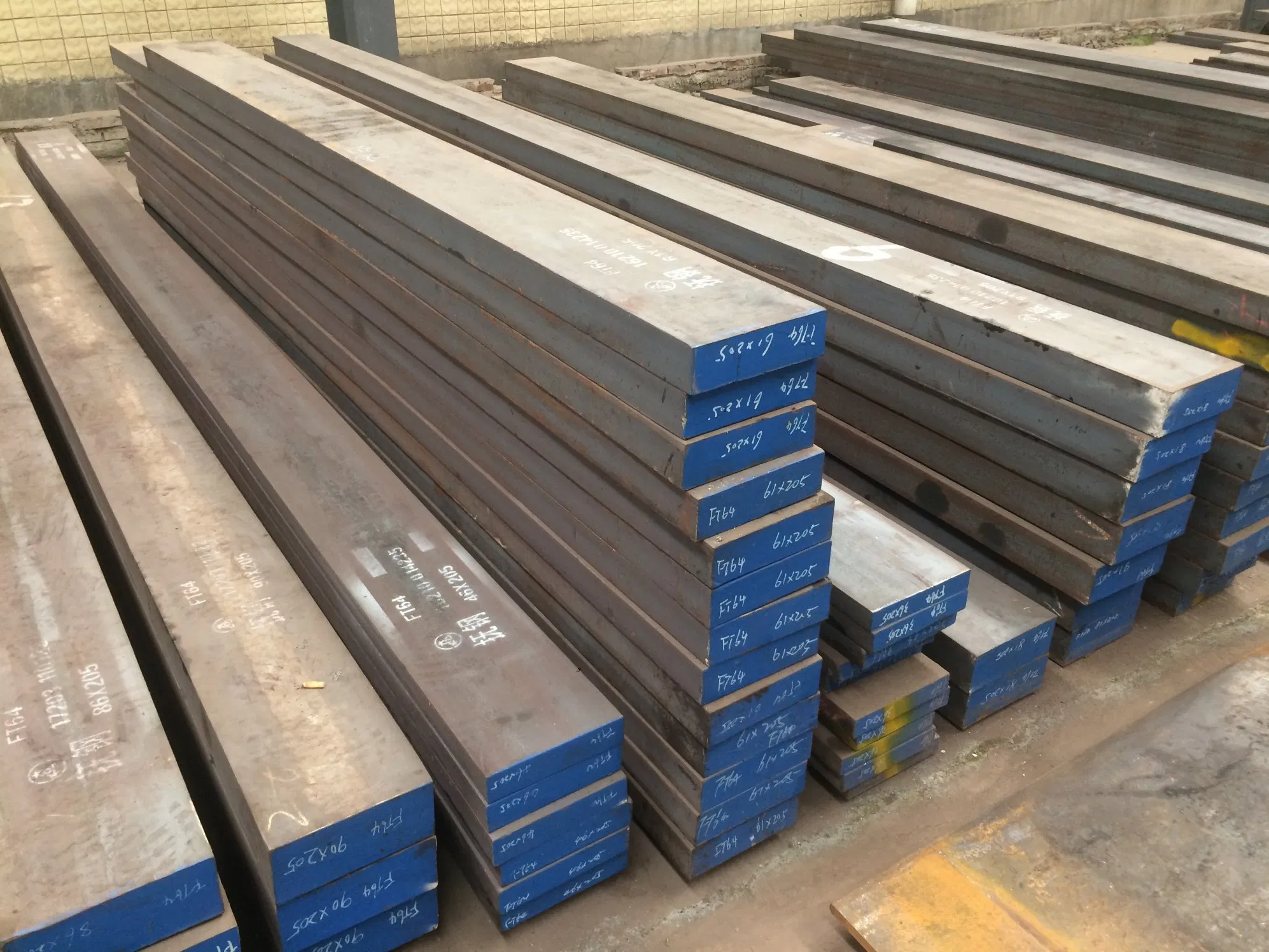

Flat Bar	Thickness	6-200mm
	Width	155-810mm
	Length	3000-5000mm
Round Bar	Diameter	6-220mm
Round Bar	Length	3000-5000mm

Packing & delivery
Antirust oil, Pearl Film, Spacer, Kraft Paper, Wooden Case, Wooden Frame, Ect.
Accept Customized Packing.
Services
Sawing-to-size- Flate/ Round (Vertical Cutting/ Horizontal Cutting machine)
Machine and milling -Plate / Round (Plane washing/ Peeling Machine)
Block Cutting(Customized Size)
Machine Grinding (Grinding Machine/ / Cold Draw Machine)
Side Milling / Round Milling(Plate: 2 / 4 / 6 side milling) / (Round:Cold draw/ Grinding/ Turned, Etc.)
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
