Product Description

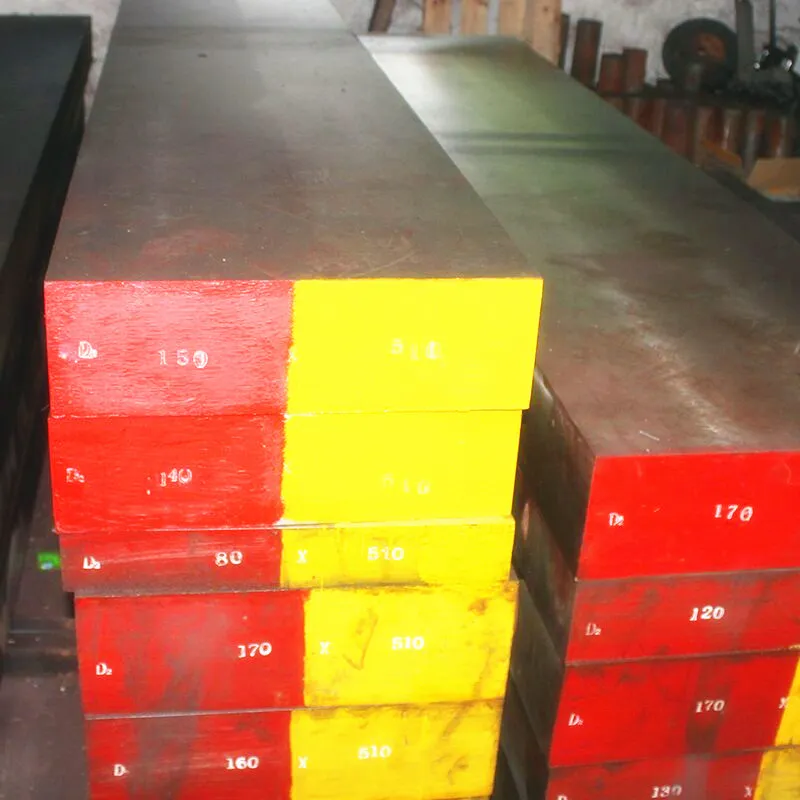

D2/1.2379/SKD11 Hot Forged Special Alloy Steel Flat Bar & Round Bar

Product Introduction
1.2379 is a high carbon and chromium alloy tool steel, which has high hardness and wear resistance after heat treatment, and has strong hardenability and good dimensional stability.

D2 steel is a high wear resistant micro deformation cold working die steel, belonging to air hardening tool steel. With high quality fraction of carbon and high chronic, the hardness can up to 60HRC after heat treatment, but malleability,toughness,rust resistance is not good and the surface of the steel is also difficult to be polished.

With the development of cold stamping products moving towards high accuracy,high efficiency, varieties, we require the mould steel should has good wear resistance and high toughness.

Compared with Cr12MoV steel, this D2 die steel adds Mo,V compositions,changed the steel cast structure, improved the morphology of ledeburite , toughness and wear resistance are better than Cr12MoV steel, improved the service life as well.Because of the yield point and plastic deformation resistance is higher than Cr12MoV steel, so that forging performance and hot molding properties are a little weak than Cr12MoV steel.

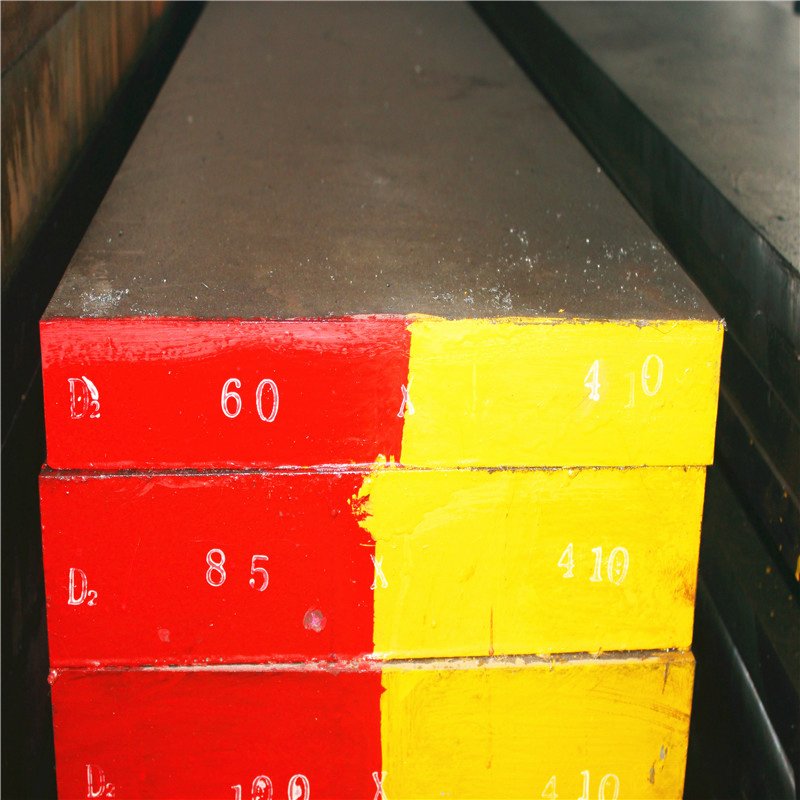

D2/1.2379/SKD11 Hot Forged Special Alloy Steel Flat Bar & Round Bar

Features

High wear resistance
High compressive strength
Good dimensional stability
Good processability
Excellent resistance to temper softening
Good toughness

Similar Standards

Chinese	American	German	Japanese
GB	AISI	DIN	JIS
Cr12Mo1V1	D2	1.2379	SKD11

Chemical Composition

Grades	C	Si	Mn	P	S	Cr	Mo	V
1.2379	1.5-1.6	0.1-0.4	0.15-0.45	≤0.003	≤0.03	11-12	0.6-0.8	0.9-1.1
D2	1.4-1.6	0.3-0.5	0.3-0.5	≤0.03	≤0.03	11-13	0.7-1.2	0.8
Cr12Mo1V1	1.4-1.6	≤0.6	≤0.6	≤0.03	≤0.03	11-13	0.7-1.2	0.5-1.1
SKD11	1.4-1.6	≤0.4	≤0.6	≤0.03	≤0.03	11-13	0.8-1.2	0.2-0.5

Heat Treatment

Quenching			Tempering
Heating Temperature/ºC	Cooling	Hardness/HRC	Heating Temperature/ºC	Cooling	Hardness/HRC
980-1040	Oil or air	60-65	180-220	Air	60-64
1060-1100	Oil or air	60-65	510-540	Air	60-64

General Applications

1 Thin sheet with a thickness of not more than 2mm, high-efficiency blanking die, punching die and stamping die
2. Various scissors, inlaid blades, wood working blades
3. Thread rolling die and wear-resistant slider
4. Cold heading mould, thermosetting resin molding die
5. Deep drawing die, cold extrusion die
Stock Size

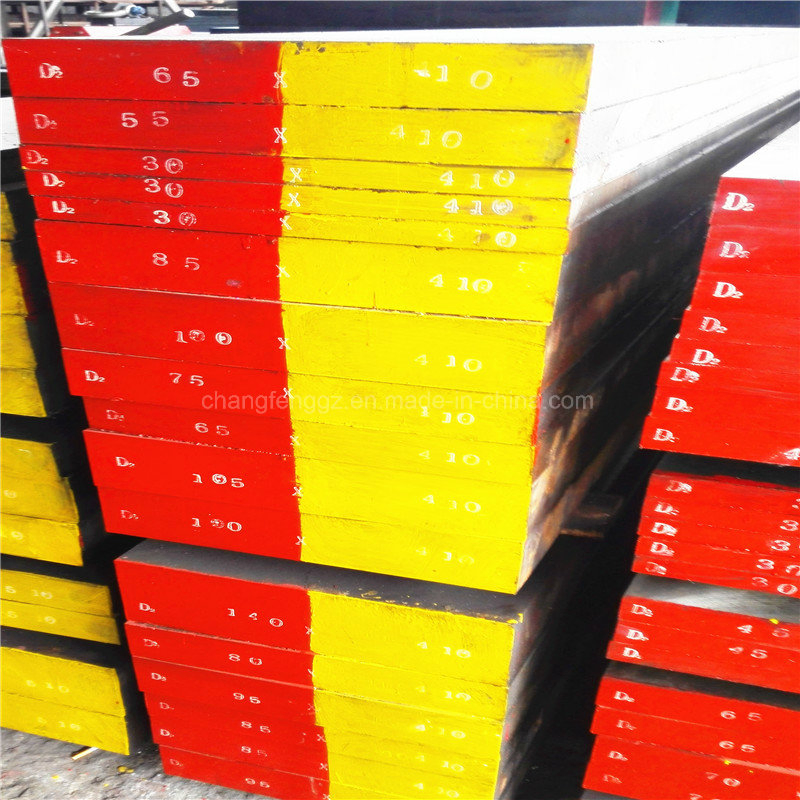

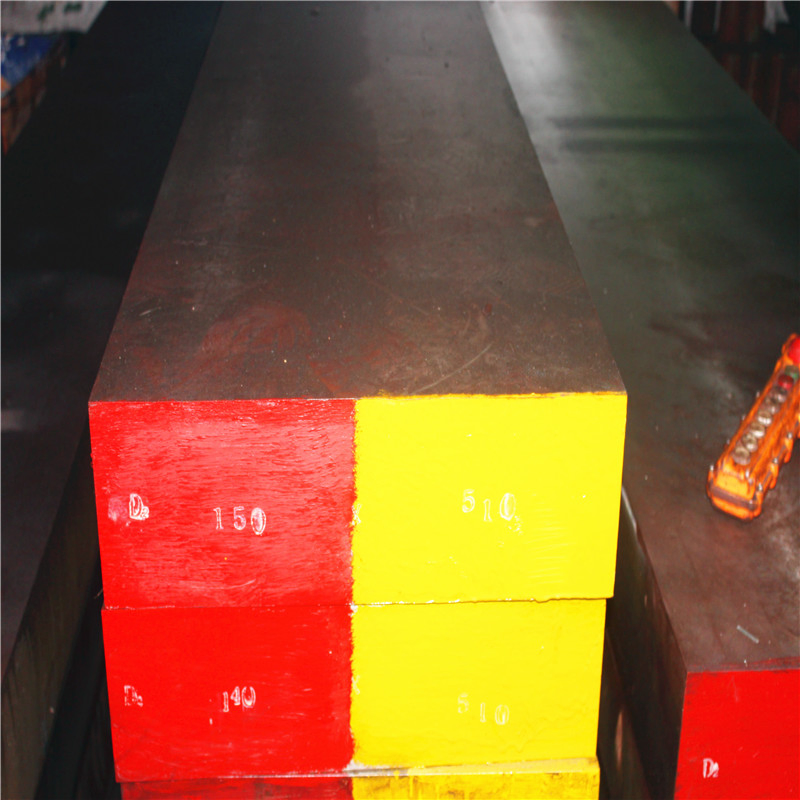

Flat Bar	Thickness	6-160mm
	Width	155-810mm
	Length	3000-6000mm

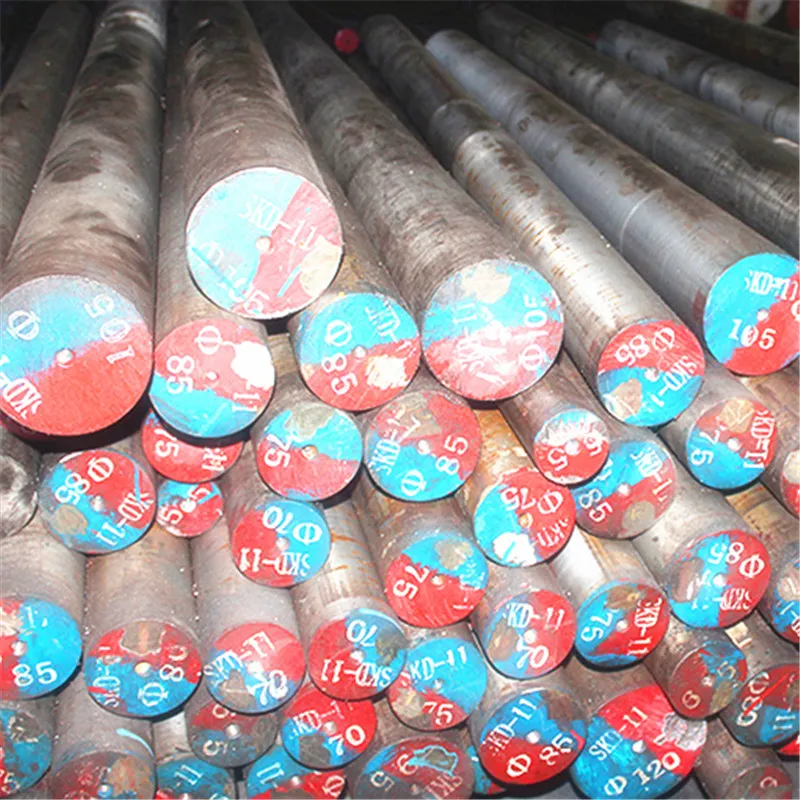

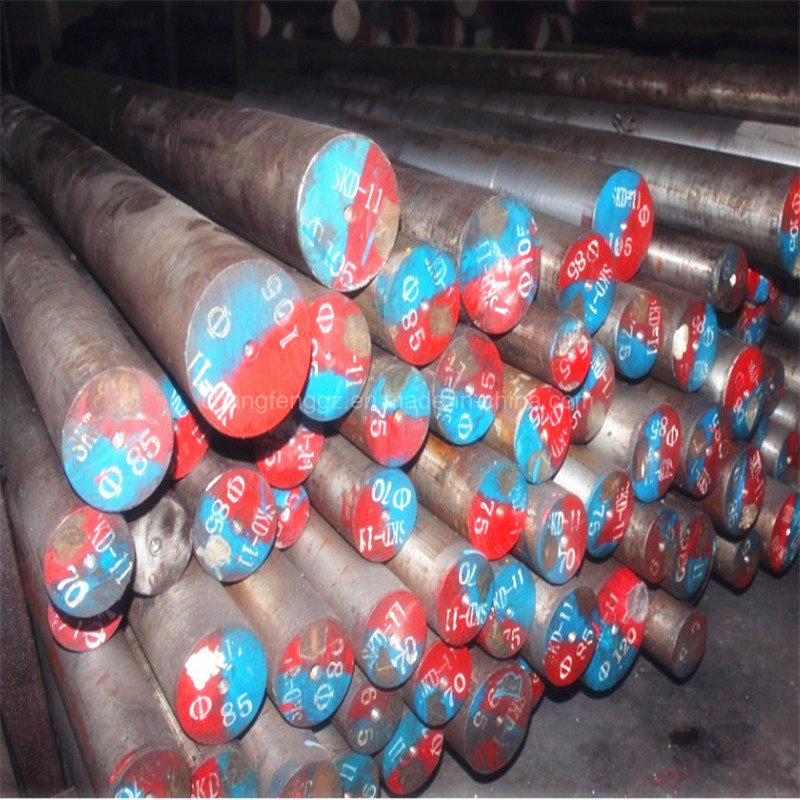

Round Bar	Diameter	14-80mm
Round Bar	Length	300-6000mm

Sizes and Conditions

Our steel materials are in different sizes and conditions specially catered to our customers' needs. They come in round bars, flat bars, plates and blocks.
The conditions of the materials vary from pre-hardened, hot rolled,annealed, quenched and tempered to surface conditions such as black, pre-machined,griding and polish.
Why choose us?

Quality Assurance from government owned steel mills
At Changfeng, we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects -our customers' continuous support over the past two decades is the most heartfelt recognition to us.

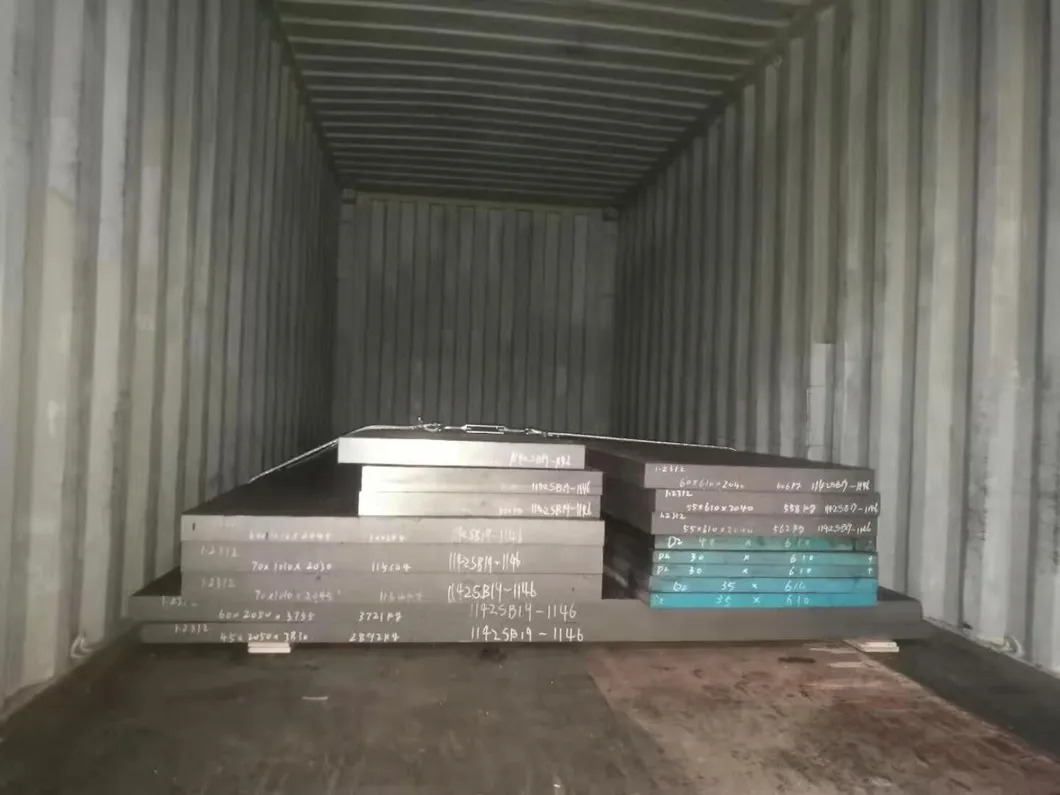

Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.

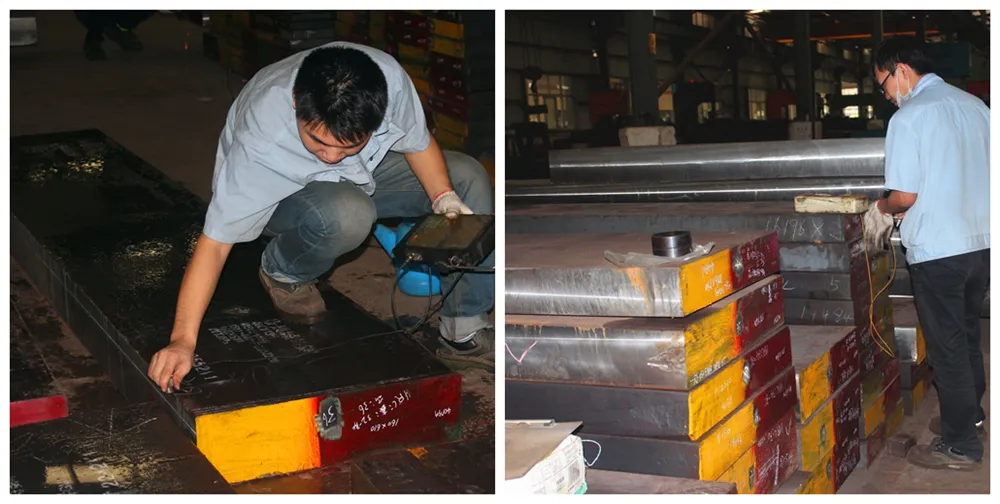

Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and recertification's on a regularly prescribed basis.
Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service

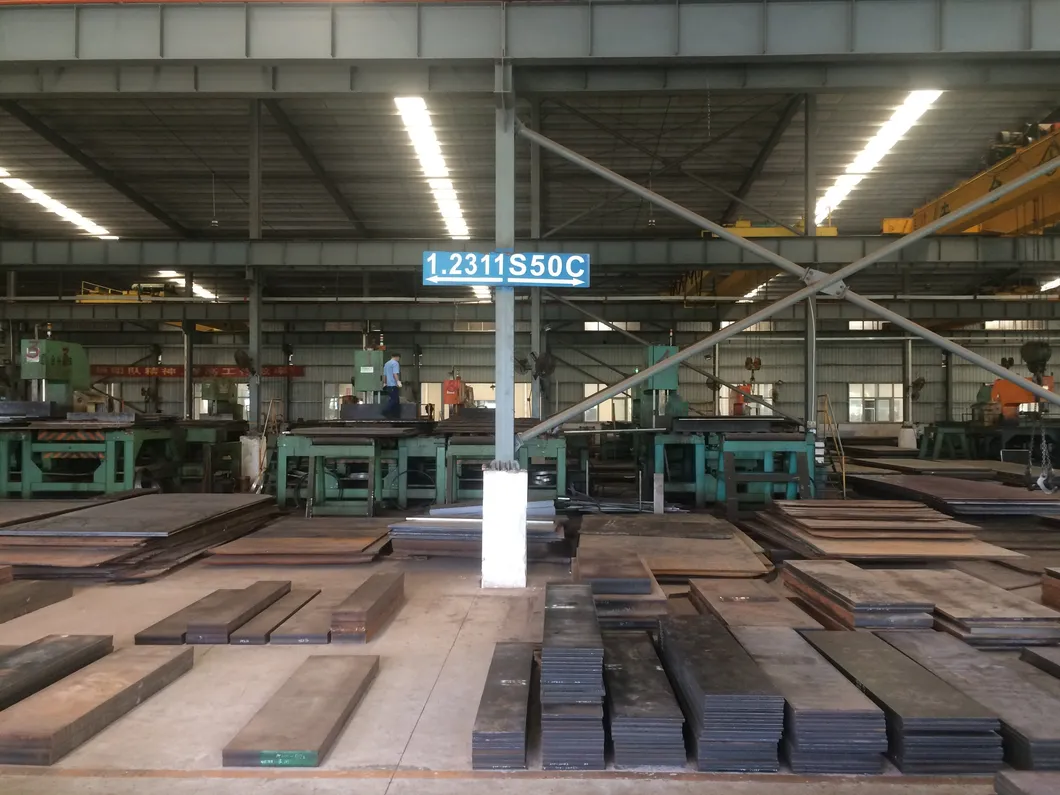

Workshop
D2/1.2379/SKD11 Hot Forged Special Alloy Steel Flat Bar & Round Bar
