    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    • ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    • ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    • ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    • ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water

    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water

    Product Description:Specification:Product nameLarge Size ISO 2531class K9 K7 ductile iron pipe price ductile iron pipe 300mmInternal coating:Mortar Cement Lining/High alumina cement mortar liningExternal Coating:Zinc + Bitumen Painting /epoxy paintingStandard:ISO2531/EN545/EN598Joint type:T/K/Flange......

    Send Inquiry

    Product Description

    Product Description:
    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterSpecification:
    Product name
    Large Size ISO 2531class K9 K7 ductile iron pipe price ductile iron pipe 300mm
    Internal coating:
    Mortar Cement Lining/High alumina cement mortar lining
    External Coating:
    Zinc + Bitumen Painting /epoxy painting
    Standard:
    ISO2531/EN545/EN598
    Joint type:
    T/K/Flange type
    Advantage:
    High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long lifetime
    Chemical composition(%):
    C: 3.5 - 4.0
    Si: 1.9 - 2.6
    Mn:0.15 - 0.45
    P: <0.06
    S: <0.02
    Quality test:
    By automatic inspection equipment.
    We can also accept the third party (like SGS,BV )inspection according
    to customers' requirement

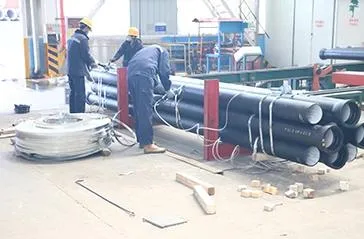

    Packing:
    Diameter less than DN300 by bundles ,others by bulk.We can also do
    special protection according to customers' requirement

    Ductile Iron pipe Features:

    1.The pipes are produced with good straightness, wall thickness, remarkable mechanical prosperities.
    2.Flexible push-in Joint and rubber gasket are used resulting in convenient installation of pipelines centrifugal casting T-type Ductile Cast Iron pipes.
    3.The pipes are produced by standard ISO02531, EN545 and EN598.
    4.The pipes are push in joint type, external coating zinc + bitumen painting, internal lined the cement mortar.
    5.The gasket materials are the NR, NBR, EPDM and so on.

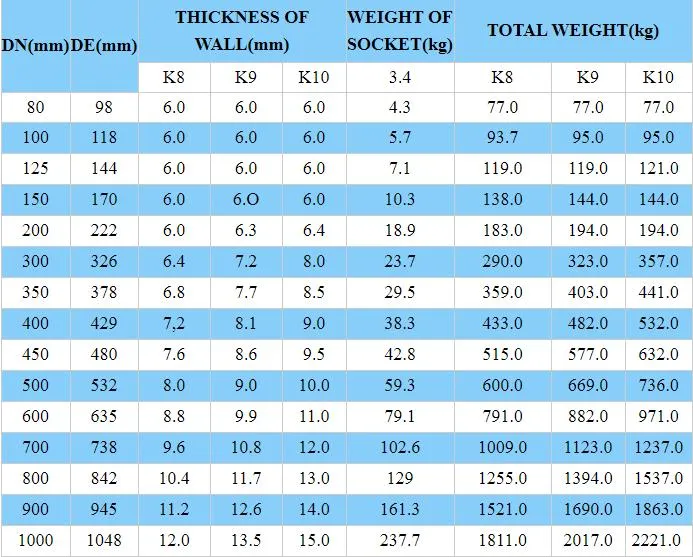

    Technical parament:

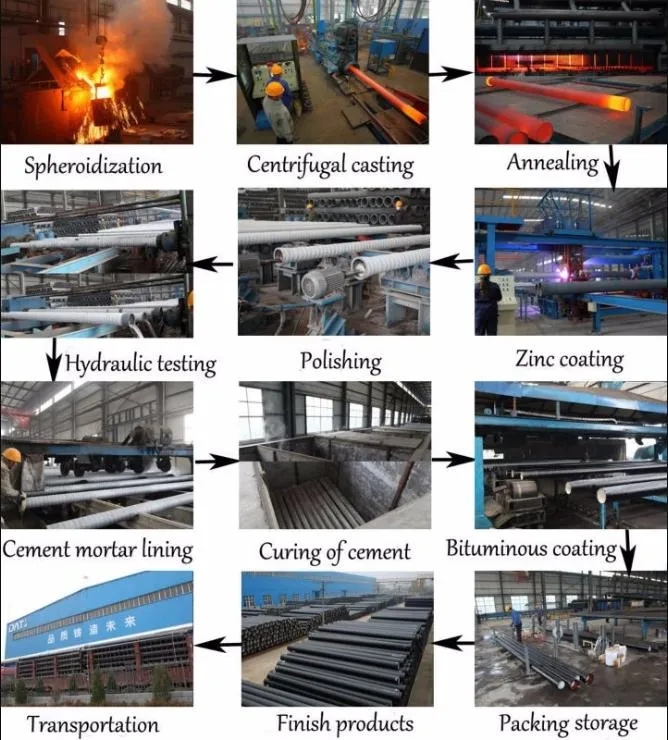

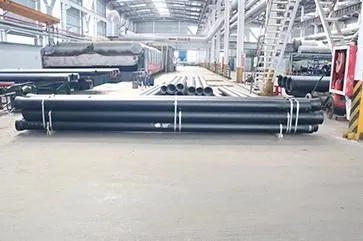

    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water    Production Flow:

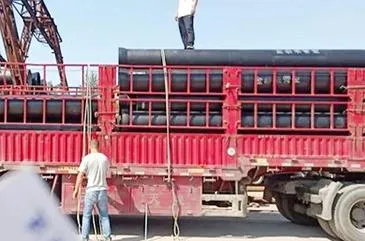

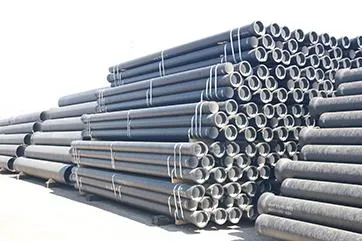

    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for WaterPacking & Delivery:
    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water
    ISO 2351 Class K9 DN80mm to DN2000mm Dci Pipe Di Pipe Ductile Cast Iron Pipe Manufacturers for Water


    Packaging Details:Standard Exporting Seaworthy Packing
    Delivery Detail:5~20 working days
