En39 Pipe/BS1139 Pipe/Scaffolding Steel Pipes
Scaffolding tube , Hot Dip Galvanized Scaffold pipe Size/Diameter 1-1/2" (48.3mm)Wall thickness (W.T.)3.2mm, 4.0mmLength6.0M, 6.5M, 5.0M, 4.0M, 3.0M, 6.5M,1m-12m ,by customer's requiremntsInternatioanal StandardISO 9000-2001,CE CERTIFICATE,BV CERTIFICATEStandardsEN39,BS1139,JIS3444,GB/T3091......
Send Inquiry
Product Description
Scaffolding tube , Hot Dip Galvanized Scaffold pipe
Dimensions,mass and tolerances according to EN39 / BS1139:
Dimensions

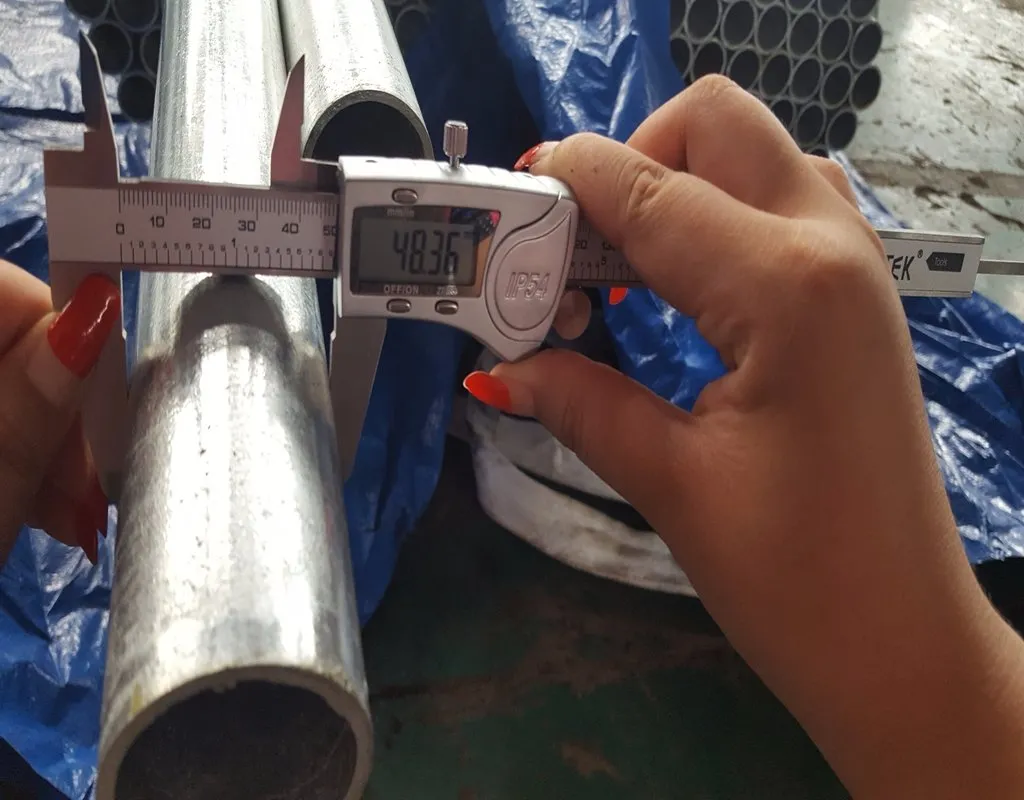

The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;
The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;
Ba Zhou Huaxin Metal Product co.,ltd our factory is located in Bazhou City, Hebei Province. it Established in 2004, the company covers an area of 30,000 square meters, with a construction area of 7,500 square meters and more than 200 employees. It has a set of 450 continuous rolling units, 4 hot-dip galvanizing production lines and 12 hot-dip galvanizing machines.The company's main products are hot-dip galvanized steel strip and hot-dip galvanized pipes, of which the annual production capacity of hot-dip galvanized steel strip reaches 150,000 tons, the specifications are 0.18-2.0mm thickness and 18-500mm width; hot-dip galvanized pipes have an annual capacity of 120,000 tons. All products are manufactured in strict accordance with IS09001:2000 quality system, with advanced equipment and reliable quality.
Why choose us?
Our products are sold well in 20 provinces, cities and autonomous regions at home and abroad, and are exported to the United States, Singapore, Turkey, Mongolia and other countries in bulk, gradually forming a stable sales network. Quality service,advanced technology, excellent equipment, strict management, is the root of the company to continue to develop and grow, and products can win users rely on. "Accuracy, reliability, professionalism" is our production spirit and service belief.TIANJIN HONGXIN INTERNATIONAL TRADE Co., Ltd has won the trust and praise of customers at home and abroad by perfecting the professional pre-sale, sale and after-sale service in place, the company insists on the basis of technological innovation, pay close attention to quality management, and constantly improve the level of service to achieve the healthy development of the company's business. We participate in the promotion and industry exchange activities, the company in the long-term development process with excellent product quality, good product performance, leading technical advantages and many large well-known domestic enterprises have established a long-term good partnership, we also warmly welcome foreign customers to visit our company, visit and technical exchanges!
FAQ
Q1.Are you a trade company or manufacturer?
We are a company integrating industry and trade.
Q2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q3.Can you provide free sample?
Of course we can,We have many samples in various patterns in stock, and customized samples will take about 5-7days to produce.Just contact us for the FREE SAMPLES now !
Q4. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.And you can also find our contact information on contact page.
Q5.How can you garantee what I got will be good ?
We are factory with 100% predelivery inspection which garantee the quality.And as golden supplier on Alibaba. Alibaba assurance will make garantee,which means alibaba will pay your money back in advance if there is any problem with the products.
Q6.Can I have my own logo on the product?
Of course!We are a custom service,it includes customized packaging,customized logo,graphic customization.
Size/Diameter | 1-1/2" (48.3mm) |
| Wall thickness (W.T.) | 3.2mm, 4.0mm |
Length | 6.0M, 6.5M, 5.0M, 4.0M, 3.0M, 6.5M,1m-12m ,by customer's requiremnts |
Internatioanal Standard | ISO 9000-2001,CE CERTIFICATE,BV CERTIFICATE |
Standards | EN39,BS1139,JIS3444,GB/T3091-2001 |
Materials | S235GT,S355,STK400,STK500,Q345/Q235 |
Product Category | Metallurgy,Mineral & Energy |
Technique | Welded |
Packing | 1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers |
Main market | Middle East,Africa, Asia and some Uropean country and South America ,Australia |
Country of origin | China |
Productivity | 5000 Metric Tons pet Day |
Remark | 1. Payment terms :T/T ,L/C 2. Terms of trade :FOB ,CFR,CIF ,DDP,EXW 3. Minimum order : 2 tons 4. Lead time :on or before 35 days . |
Dimensions,mass and tolerances according to EN39 / BS1139:
Dimensions
The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;
The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;
Ba Zhou Huaxin Metal Product co.,ltd our factory is located in Bazhou City, Hebei Province. it Established in 2004, the company covers an area of 30,000 square meters, with a construction area of 7,500 square meters and more than 200 employees. It has a set of 450 continuous rolling units, 4 hot-dip galvanizing production lines and 12 hot-dip galvanizing machines.The company's main products are hot-dip galvanized steel strip and hot-dip galvanized pipes, of which the annual production capacity of hot-dip galvanized steel strip reaches 150,000 tons, the specifications are 0.18-2.0mm thickness and 18-500mm width; hot-dip galvanized pipes have an annual capacity of 120,000 tons. All products are manufactured in strict accordance with IS09001:2000 quality system, with advanced equipment and reliable quality.
Why choose us?
Our products are sold well in 20 provinces, cities and autonomous regions at home and abroad, and are exported to the United States, Singapore, Turkey, Mongolia and other countries in bulk, gradually forming a stable sales network. Quality service,advanced technology, excellent equipment, strict management, is the root of the company to continue to develop and grow, and products can win users rely on. "Accuracy, reliability, professionalism" is our production spirit and service belief.TIANJIN HONGXIN INTERNATIONAL TRADE Co., Ltd has won the trust and praise of customers at home and abroad by perfecting the professional pre-sale, sale and after-sale service in place, the company insists on the basis of technological innovation, pay close attention to quality management, and constantly improve the level of service to achieve the healthy development of the company's business. We participate in the promotion and industry exchange activities, the company in the long-term development process with excellent product quality, good product performance, leading technical advantages and many large well-known domestic enterprises have established a long-term good partnership, we also warmly welcome foreign customers to visit our company, visit and technical exchanges!
FAQ
Q1.Are you a trade company or manufacturer?
We are a company integrating industry and trade.
Q2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q3.Can you provide free sample?
Of course we can,We have many samples in various patterns in stock, and customized samples will take about 5-7days to produce.Just contact us for the FREE SAMPLES now !
Q4. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.And you can also find our contact information on contact page.
Q5.How can you garantee what I got will be good ?
We are factory with 100% predelivery inspection which garantee the quality.And as golden supplier on Alibaba. Alibaba assurance will make garantee,which means alibaba will pay your money back in advance if there is any problem with the products.
Q6.Can I have my own logo on the product?
Of course!We are a custom service,it includes customized packaging,customized logo,graphic customization.
