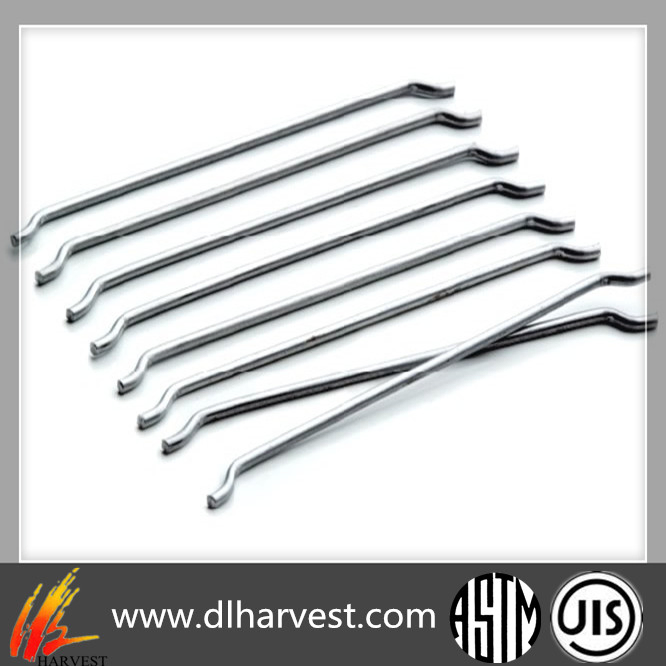

High Carbon Concrete Reinforcing Steel Fibers

Product Description

Product Discription:
Type : W-LCS/30/50HE
Materials : Low Carbon Steel
Grade : Low Carbon
Standard: ASTM A820

Chemical Analysis :

Stainless Steel		Chemical Analysis (%)
Stainless Steel		C≤	Si≤	Mn≤	P≤	S≤	Cr≤	Ni≤
Grade	L.C.	0.12	0.3	0.5	0.045	0.050	0.3	0.3

Typical Dimensions & Aspect Ratios :

Length (mm)	Diameter (mm)	Aspect Ratio	Shape	Tensile Strength (Mpa)	No/kg (approx.)
6	0.3	20	Straight	750 \| 3000	299900
15	0.3	50	Straight Hooked Ends Ripple W12		120000
20	0.4	50			50600
20	0.5	40			32400
25	0.4	62.5			40500
25	0.5	50			25900
30	0.4	75			33700
30	0.5	60			21600
12 - 14	0.18 - 0.35	34 - 78	Straight	2850	94400-416600

*Other fiber length can be manufactured on request;
*Other fiber diameter can be manufactured on request.

Product Application:
1. Industry Flooring, Nuclear power plant, Reservoir, Spaceport, …;
2. Tunnel, Bridge, Highway, Concrete culvert, Storm Sewer, Sanitary Sewer, Dam,… ;
3. Precast Concrete: Culvert pipe, Manhole cover and frame, Concrete bridge pier,…;
4. Building, School, Hospital, Bank, Jail,… ;

Using method & Using quantity:
The mixing ratio of steel fiber with the concrete matrix is about 1-5% by weight.

Health & Safety:
USING STEEL FIBRES UNDER NORMAL CONDITIONS DOES NOT PRESENT AN INHALATION, INGESTION OR CONTACT HEALTH HAZARD.
BECAUSE OF THEIR PHYSICAL NATURE, WE RECOMMEND THAT OPERATIVES HANDLING THE FIBRES SHOULD ALWAYS WEAR GLOVES.
TO AVOID DETERIORATION OF PACKING, THE FIBRES SHOULD BE STORED IN A DRY ENVIRONMENT.

Packing & Shipping:
1.Paper Bags + Pallet (10kg / 20kg / 25kg paper bags for you to choose);
2.Cartons + Pallet ( 1kg / 5kg / 10kg / 20kg / 25kg cartons for you to choose);
* Net Weight : 800 kg / 900 kg /960kg/1000kg/1200kg per pallet for you to choose;
*Plastic Pallet / Wooden Pallet for you to choose.
