Aluminium 7021 and Aluminium Alloy 7021 Sheet or Plate
1.[aluminium alloy 7021 /7021-T6/AlZn5.5Mg1.5] Introduction:7021 aluminum is a 7000-series aluminum alloy: the main alloying addition is zinc and it is formulated for primary forming into wrought products. Cited properties are appropriate for the T6 temper. To achieve this temper, the metal is solu......
Send Inquiry
Product Description
Introduction:
7021 aluminum is a 7000-series aluminum alloy: the main alloying addition is zinc and it is formulated for primary forming into wrought products. Cited properties are appropriate for the T6 temper. To achieve this temper, the metal is solution heat-treated and artificially aged until it meets standard mechanical property requirements. 7021 is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-7021. Additionally, the EN chemical designation is AlZn5,5Mg1,5. And the UNS number is A97021.
It originally received its standard designation in 1976.
The graph bars on the material properties cards below compare 7021 aluminum to: 7000-series alloys (top), all aluminum alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.
| Standard: | EN 573-3: 2009 Aluminium and aluminium alloys. Chemical composition and form of wrought products. Chemical composition and form of products EN 755-2: 2008 Aluminium and aluminium alloys. Extruded rod/bar, tube and profiles. Mechanical properties EN 485-2: 2008 Aluminium and aluminium alloys. Sheet, strip and plate. Mechanical properties EN 941: 1996 Aluminium and aluminium alloys. Circle and circle stock for general applications. Specifications |
2.[aluminium alloy 7021 /7021-T6/AlZn5.5Mg1.5]
Application:
Chemistry:
Chemical composition % of grade ENAW-AlZn5.5Mg1.5 ( ENAW-7021 )
| Fe | Si | Mn | Cr | Ti | Cu | Zr | Mg | Zn | Others | - |
| max 0.4 | max 0.25 | max 0.1 | max 0.05 | max 0.1 | max 0.25 | 0.08 - 0.18 | 1.2 - 1.8 | 5 - 6 | each 0.05; total 0.15 | Al - remainder |
New opportunities for buyers!
Post free buying requirement for ENAW-AlZn5.5Mg1.5
Mechanical properties of grade ENAW-AlZn5.5Mg1.5 ( ENAW-7021 )
| Rm - Tensile strength (MPa) (T6) | 410 |
| Rp0.2 0.2% proof strength (MPa) (T6) | 350 |
| A - Min. elongation at fracture (%) (T6) | 10 |
| A - Min. elongation Lo = 50mm (%) (T6) | 8 |
| Brinell hardness (HBW): (T6) | 120 |
Properties ENAW-AlZn5.5Mg1.5
| Intended to be contact with food - no; |
4.[aluminium alloy 7021 /7021-T6/AlZn5.5Mg1.5]
Surface :mill finish , not polished,
brushed
mirror
embossed
oxidized
cold-rolled
hot-rolled
5.[aluminium alloy 7021 /7021-T6/AlZn5.5Mg1.5]
Specification:

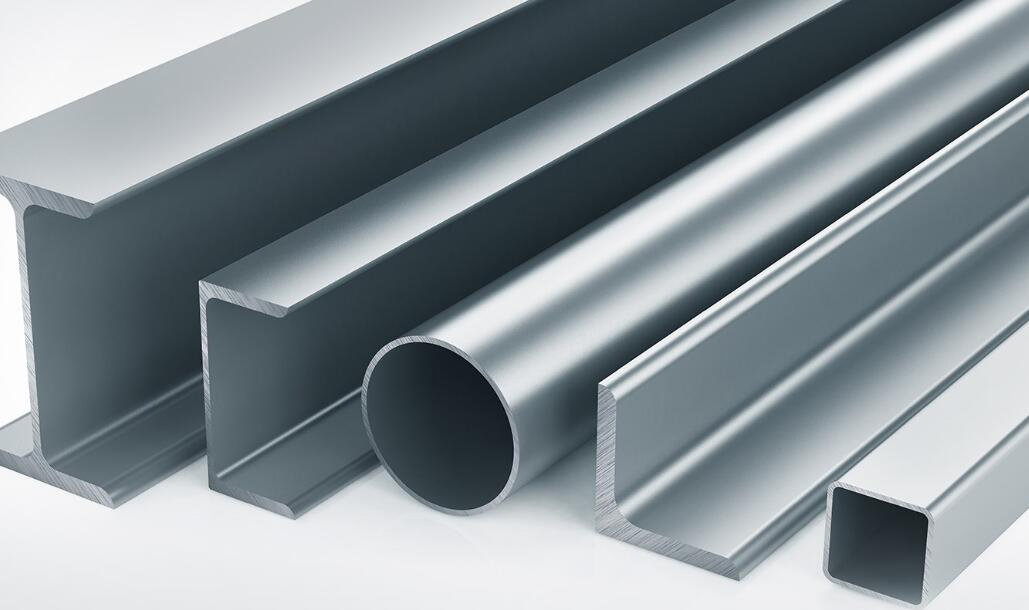

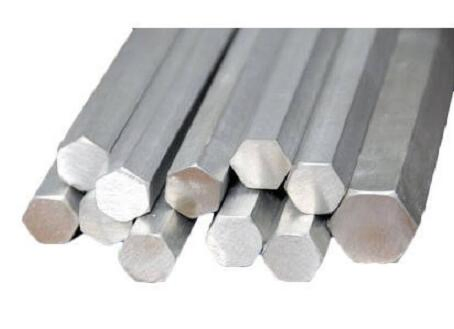

Shape/Form : sheet,plate,bar,rod,tube,pipe,strip,foil and so on
Surface : Mill Finish(Not Polished ) ,polished ,colour-coated, sand blasting , brushed,mirror ,embossed ,oxidized,anodic oxidation cold-rolled,hot-rolled

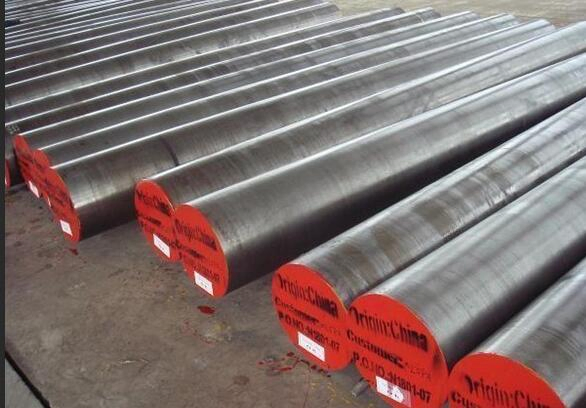

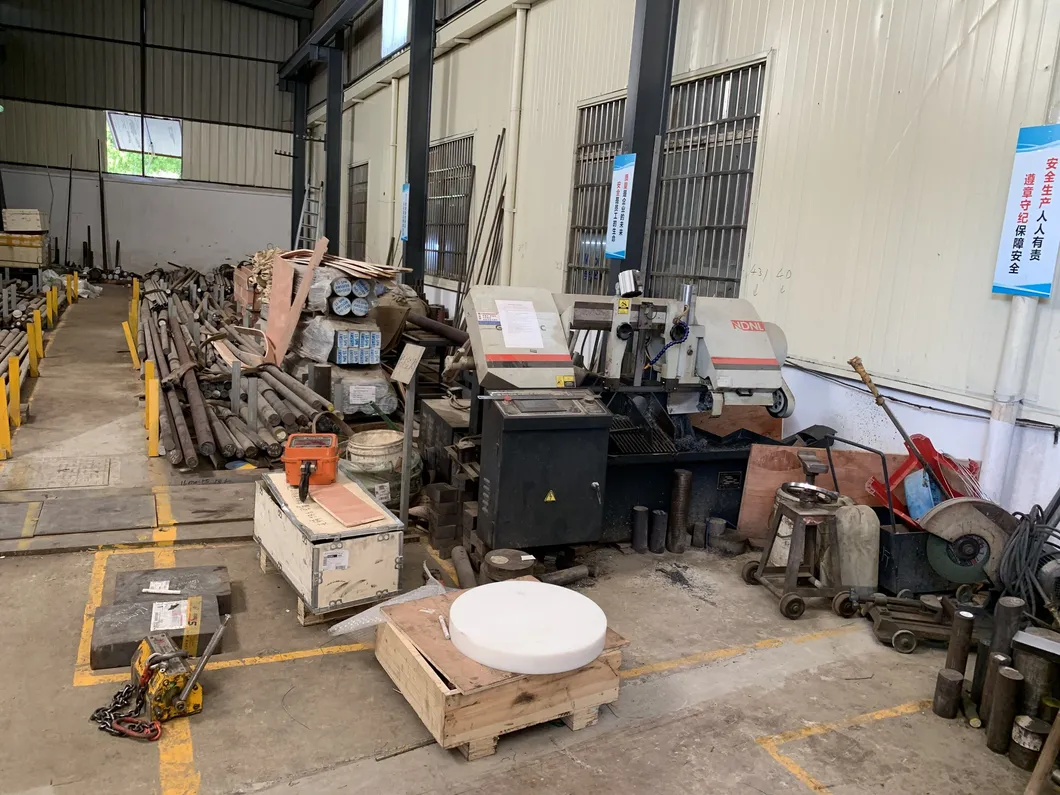

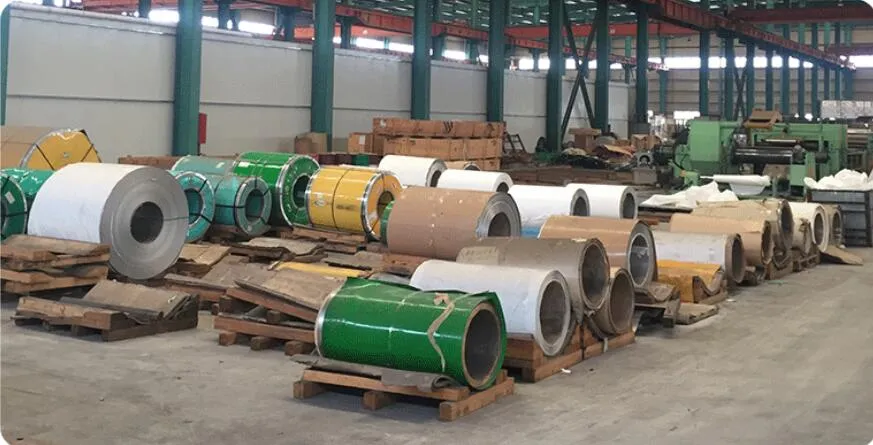

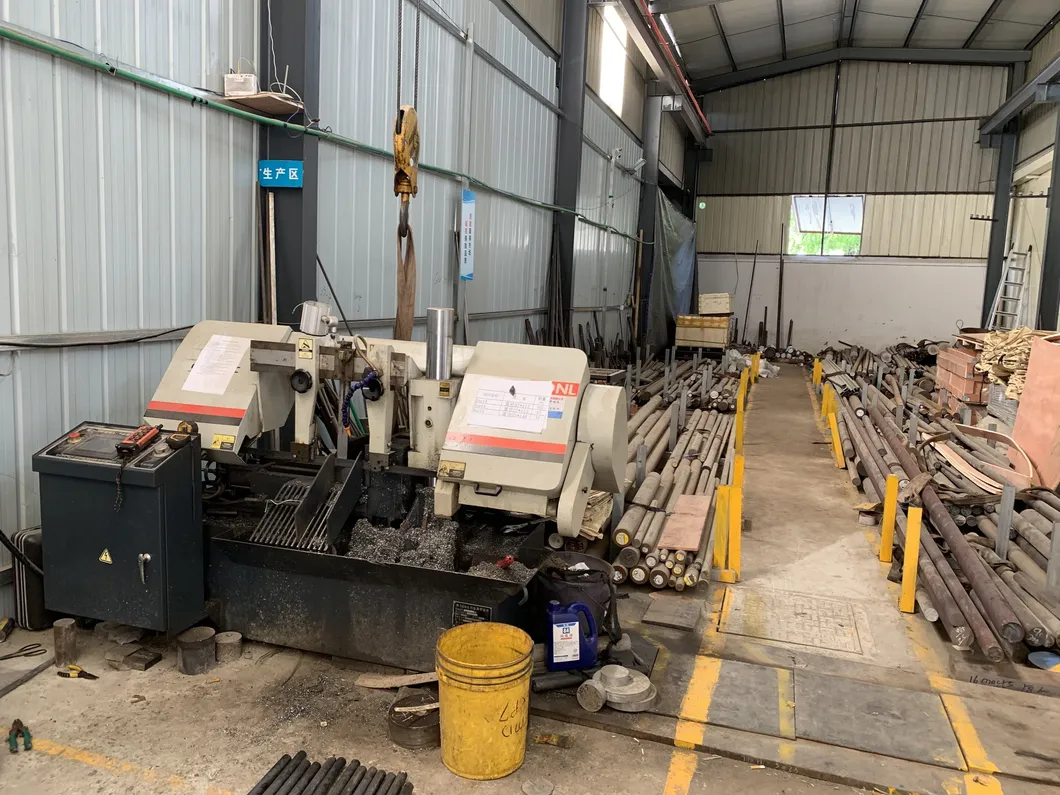

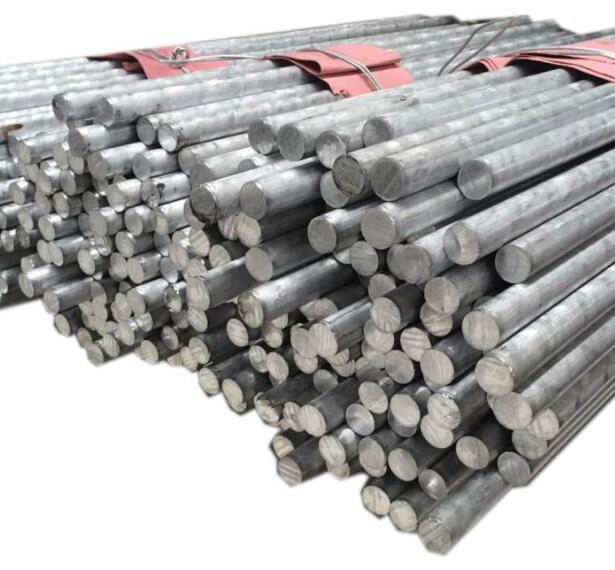

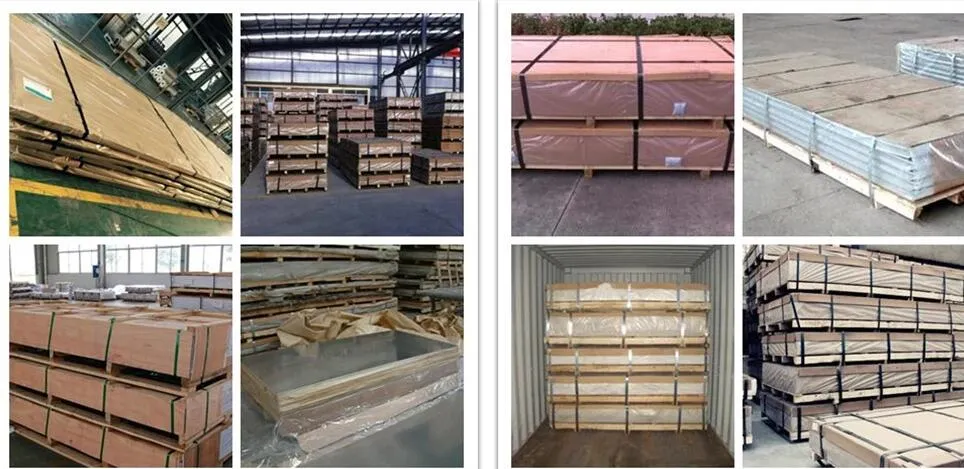

6.These are our warehouse pictures:

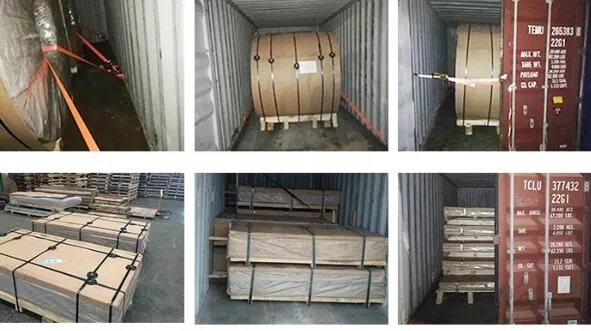

7.These are packaging pictures :
